1600kg Electric Chain Hoist with Trolley for Workshop or Warehouse Handling Materials

Product Description

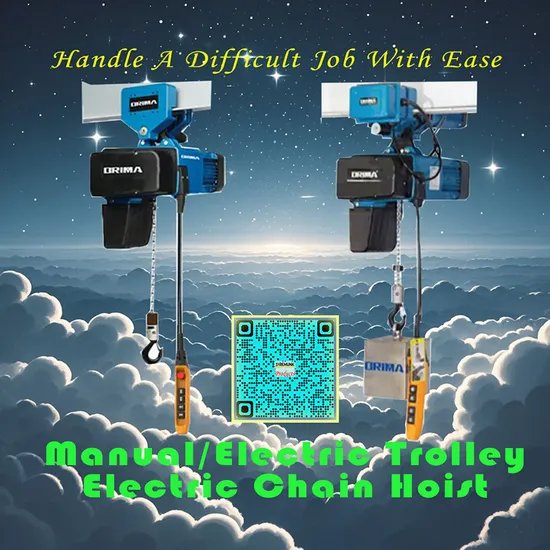

European-Style Electric Chain Crane Hoist with Trolley

Product Description
Structural Composition

It is mainly composed of the following parts:
Electric chain hoist: It contains components such as a motor, sprocket, chain, and hook. The motor provides power to drive the sprocket to rotate, enabling the chain to perform retracting and releasing operations, thereby realizing the lifting and lowering of heavy objects. Trolley: Composed of wheels, frame, and operating handle. It can be pushed on the track to move the entire equipment in the horizontal direction and expand the operating range. Track: Usually made of section steel such as I-beam, providing a walking path for the trolley.

Working Principle The electric chain hoist is driven by electricity to perform lifting operations. The operator can control the forward and reverse rotation of the motor through control buttons to realize the ascent and descent of the hook. At the same time, the movement of the trolley on the track is used to adjust the lifting position.
Characteristics and Advantages

1. High efficiency and convenience: Electrically driven to lift heavy objects, with fast speed and high efficiency, saving manpower and time. At the same time, the design of the trolley is convenient for operation at different positions.
2. Flexible movement:
The trolley can move freely on the track, enabling the equipment to adapt to different work scenarios and improving work flexibility.
3. Safe and reliable:
Equipped with safety devices such as overload protection and limit protection to ensure the safe progress of lifting operations.
4. Simple operation:
The control button design is concise and clear, easy to operate, and even personnel without professional skills can quickly get started.
Application Scenarios

Widely used in factory workshops, warehouses, construction sites and other places for equipment installation, cargo handling, construction material hoisting and other work.
For example, in a factory, large equipment can be conveniently moved from one workstation to another; in a warehouse, goods can be loaded and unloaded quickly to improve logistics efficiency.

Product Parameters

Model	Lifting Weight (kg)	Lifting Speed	Numbers Of Chain	Working Lever FEB/ISO
BMS0.125-8-4-01M	125	8m/min 2m/min	1	2m/5M
BMS0.125-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.25-8-4-01M	250	8m/min 2m/min	1	2m/5M
BMS0.25-12-4-01M		12m/min 3m/min	1	2m/5M
BMS0.25-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.5-8-4-01M	500	8m/min 2m/min	1	2m/5M
BMS0.5-12-4-01M		12m/min 3m/min	1	2m/5M
BMS0.5-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.5-24-4-01M		24m/min 6m/min	1	2m/5M
BMS0.5-4-4-02M		4m/min 1m/min	2	2m/5M
BMS01-6-4-01M	1000	6m/min 1.5m/min	1	2m/5M
BMS01-8-4-01M		8m/min 2m/min	1	2m/5M
BMS01-12-4-01M		12m/min 3m/min	1	2m/5M
BMS01-16-4-01M		16m/min 4m/min	1	2m/5M
BMS01-4-4-02M		4m/min 1m/min	2	2m/5M
BMS01.6-6-4-01M	1600	6m/min 1.5m/min	1	2m/5M
BMS02-6-4-01M	2000	6m/min 1.5m/min	1	2m/5M
BMS02-8-4-01M		8m/min 2m/min	1	2m/5M
BMS02-4-4-01M		4m/min 1m/min	2	2m/5M
BMS2.5-6-4-01M	2500	6m/min 1.5m/min	1	2m/5M
BMS2.5-8-4-01M		8m/min 2m/min	1	2m/5M
BMS2.5-4-4-01M		4m/min 1m/min	1	2m/5M
BMS3.2-3-4-02M	3200	3m/min 1m/min	2	2m/5M
BMS3.2-4-4-02M		4m/min 1m/min	2	2m/5M
BMS3.2-6-4-02M		6m/min 1.5m/min	2	2m/5M
BMS05-3-4-02M	5000	3m/min 1m/min	2	2m/5M
BMS05-4-4-02M		4m/min 1m/min	2	2m/5M

If there is a demand, please inform us of the following data. We will select a suitable model for you according to the actual working conditions.

Lifting Weight kg
Lifting Height m
Lifting Speed m/min	Are there any special requirements?
Voltage v
Other Requirements
Trolley Type	Manual/Electric

Other Products

Company Profile
Office Scenarios
Workshop
Inventory of hoists
Certifications

FAQ

Q 1:What type of company are you?
We are the brand owner of multiple series of cranes, and our brand is Premunk. We also act as an agent for hoists of other brands, such as Konecranes, Dmg and Brima. In addition, we can provide OEM/ODM manufacturing services for our clients. Clients of all kinds are welcomed to come for business negotiations.
Q 2: What trade terms and currencies can you accept?
We normally trade with our clients in EX-Works, FOB, CFR and CIF.We quote prices in Chinese Yuan or US dollars.
Q 3: How about the lead time?
Within 10 to 45 working days after receiving the advance payment.
Q 4: How about the transportation?
We will suggest you the best shipment method according to your goods dimensions and weight. It also depends on clients' decisions. We will try our best to serve you.Suzhou, where our company is located, is close to Shanghai. Therefore, we usually use the port of Shanghai to export goods.
Q 5: Are you responsible for equipment installation?
Regarding installation, the installation service fee is not included in our quotation. We will provide installation instructions to help customers install the equipment by themselves. If customers need us to send technicians to conduct the installation service, we will charge an additional installation fee.
Q 6:What are your after-sales services?
We offer a one-year quality guarantee for our products. If there are any quality problems with the products themselves within one year after shipment, we will provide replacement parts for you as soon as possible. After one year, we will provide paid spare parts for the entire life cycle of the products.

---
