Jieda HR500 Model Two Stage Continuous Flow Centrifuge

Product Description

Jieda HR500 Model Two Stage Continuous Flow Centrifuge

Introduction of HR500 Model Continuous Flow Centrifuge:
The HR500 Model Continuous Flow Centrifuge is a filtering centrifuge with horizontal double-stage piston pushing and continuous operation. The centrifuge can carry out feeding, separating, washing, discharging, etc. continuously when it is running at full speed. With such features as continuous operation, stable running, high separation factor, high production capacity, high output, good washing effect, low cake moisture content, low mother liquor solid content and etc., it is suitable for separation of suspensions containing solids with granularity higher than 0.08mm and concentration higher than 35%. It is widely used in chemical industry, chemical fertilizer, alkali making, salt making and other industries, and is especially suitable for solid-liquid separation of sodium chloride, ammonium chloride, ammonium bicarbonate, sodium sulfate, ammonium sulfate, etc.
Product Structure Principle of HR500 Model Continuous Flow Centrifuge:
The main motor drives the inner and outer bowls to turn at full speed. The materials are continuously introduced from the feeding pipe and are evenly spread onto the inner filter screen wall of the inner bowl. Under the action of centrifugal force, after passing through the filter screen and bowl filtration pores, the liquids are discharged outside the machine from the liquid discharging pipe. The solids are retained in the inner bowl and form circular filter cakes. When the inner and outer bowls are turning at the same speed, the inner bowl is pushed by the piston to continuously make axial reciprocating movements. Thus, the pushing disc pushes the filter cakes at the inner bowl to continuously move outwards and enter the outer bowl for further separation and formation of circular filter cakes after they are discharged outside the inner bowl. The outer face of the inner bowl will push the filter cakes at the outer bowl to continuously move outwards until they are discharged outside the outer bowl, and then discharged outside the machine after passing through the scraping groove.
Notes of HR500 Model Continuous Flow Centrifuge:
1.The technical parameters in product instructions shall prevail.
2.During consultation, customers should specify material features, parameters, service conditions and other requirements.
3.According to special requirements of customers, we can adopt individual design and manufacturing.
4.Materials: Parts that contact materials can be made of ordinary stainless steel, special stainless steel, titanium alloy, etc.
5.Motor type: ordinary or explosion-proof single-speed motor, etc.
6.Liquid discharging mode: The mother liquor and washing liquid can be discharged together or respectively.
7.Selection range of filter screen interval width: 0.08-0.40mm
8.Design and manufacturing can be made according to the GMP standard.
9.Other technical requirements can be negotiated.
Main Technical Parameters of HR500 Model Continuous Flow Centrifuge:

Model		HR-400-N	HR-500-N	HR-630-N	HR-800-N	HR-1000-N
Inner/Outsider Drum	Diameter(mm)	337/400	400/500	560/630	720/800	920/1000
	Filtering Length(mm)	145/155	180/180	240/240	240/320	240/320
	Max Speed(r/min)	1600	1800	1000-1800	800-1600	650-1250
	Separating Factor(ω²r/g)	545/645	796/904	350/1142	286/1145	236/875
Length Stroke(mm)		40	50	50	50	50
Frequrncy of Stroke(1/min)		30-70	40-80	30-80	30-80	20-70
Main Motor Power(KW)		11	45/37	37-55	55-75	75-90
Oil Pump Motor Power(KW)		5.5	22	30	37	45
Hydraulic System Pressure(Mpa)		1-6	5-12	8-25	15-40	18-50
Dimensions(mm)		2215*1160*1070	3365*1380*1628	3690*1600*1265	3700*1800*1450	4200*1900*1900
Weight(KG)		2480	3100	4100	7000	12000

HR500 Model Continuous Flow Centrifuge is suitable for Salt Production:
Drawing of HR500 Model Continuous Flow Centrifuge:

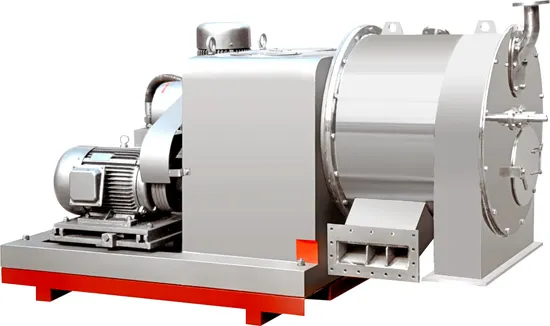

Photo of HR500 Model Continuous Flow Centrifuge:
Company Profile:
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Certificates of Our Continuous Flow Centrifuge:
Our Centrifuge Workshop:
Jieda has high-precision CNC machining tools and machining centers, advanced production equipment, fine technique and strict and perfect quality management system, and moreover, we gather professional elites and science and technology team with leading level, so as to make full use of new technologies, new techniques and new materials to guarantee stability and reliability of products. Our product quality originates from advanced manufacturing means, and the concept of fine products stems from continuous innovation.
Why Choose Us:
1. Professional team for you selecting suitable Centrifuge and give you best after-sale service
2. Good quanlity for the Centrifuge running stably
3. Reasonable Price & Fast Delivery
