Iridium Antenna Patch 1616-1626MHz Roof Screw Mount Antenna

Product Details

Product Description

Product Description

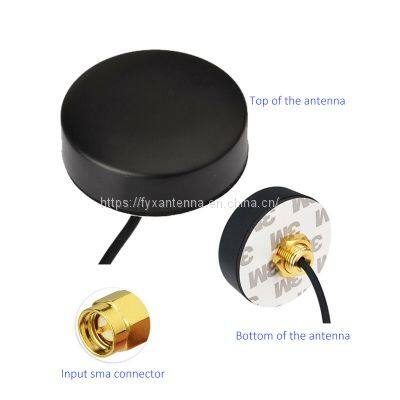

Iridium Antenna Patch 1616-1626MHz Roof Screw Mount Antenna
Iridium Antenna Electrical Specification
Frequency: 1616-1626 MHz
VSWR: <2.0
Antenna Gain: 3 dBic (Passive)
Polarization: RHCP (right-handed circularly polarized)
Noise Figure: 1.5 dB
DC Current: 5~15mA
Iridium Antenna Mechanical Specification
Connector: SMA male or others
Cable specification: RG174
Cable length: 1.5 meters or others
Antenna dimension: ф46 x 15 mm
Fixing Way: Screw mount or wall mount ( Please advise before buying)
