CNC/Mnc CE Approved Vertical Machining Center CNC Gantry Milling Machine Hot Sale

Product Description

Machine Parameters

Model	Unit	SKX2016	SKX2500	SKX3020	SKX4025
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000/2500/3000
Z axis	mm	800(1,000-opt.)
Distance from spindle nose to table	mm	150 - 950(150 / 1,150-opt.)
Distance between two column	mm	1,700 / 2,100/2600
Working table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,600 / 2,000
Table Load	kg	6,000	7,000	9,000	10,000
T- Slot (Width x Number x Pitch)	mm	22x7x180 / 22x9x180
Spindle
Spindle Taper	-	BT-50 / ISO-50 / CAT-50
Spindle Speed	rpm	3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)	kw	18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z)	m/min	12 / 12 / 15			10 / 12 / 15
Cutting feedrate	mm/min	7,000
Accuracy
Positioning Accuracy	mm	±0.005 / 300 ; ±0.015 / Full travel
	mm	P0.03		P0.035
Repeatability	mm	±0.003
	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)	mm	Ø125/245
Max. tool length	mm	350
Max. tool weight	kg	20
Others
Power required	kva	65
Pneumatic input pressure	kg/cm2	6.5
Machine net weight	tons	20 / 22	22 / 24	24 / 26	28 / 30
Floor space (LxWxH)	m	8.5x5.1(5.5)x4.7	10.5x5.1(5.5)x4.7	12.5x5.1(5.5)x4.7	15.2x5.1(5.5)x4.7

Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

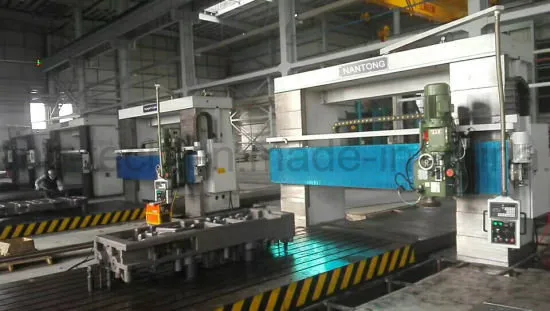

factory show
Packing & Delivery
Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.

Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
FAQ
1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production. when the machine is ready , we will take pictures to you, and then you can do the ballance. after we got your payment. i will send the machine to you. 2. How about your service after sales ? can your engineer speak fluent english ? we offer the service from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time. 3.Are you a factory or trading company? We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory 4. How long is the delivery time? For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. 5. How about the documents after shipment? Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client. 6.How to master the stability of machine castings? The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained.
Welcome your inquiry!

---
