Laboao 6-12 Conjoined Glass Fermenter Bioreactor Price

US$39,800.00
1-9 Pieces
US$15,900.00
10+ Pieces

Basic Info.

Model NO.
LBR-XGJGG/LBR-XGJ-XH Series
Type
Fermentation Extraction
Material
Stainless Steel
Capacity
1/2/3/5/7/10/15L
Structure
Glass Biological Fermentation
Pressure
Negative
Agitator Model
Frame Agitator
Tower Reactor Type
in Situ Sterilization
Heating
Electric Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Product Name
Bioreactor Fermenter
Material of Tank
316 Stainless Steel Bottom Jacketed Ws
Volume
1/2/3/5/7/10/15L
Name
Four Kettle Glass Bioreactor
Application
Chemical Reaction
Stirring Method
Magnetic Coupling and Shaft Coupling
Sterilization Method
off-Site or in-Site Autoclave Sterilization
Basic Configuration
Temperature, Speed, pH, Do, Defoaming, Ventilation
Usage
Optimization of Growth Medium
Control Parameters
Temperature, Rotation Speed, Humidity.
Control System
Control System
Function
Function
Perfect Feeding System
an Feed Regularly and Quantitatively;
Weight
40-220kg
Power
220V/380V
Transport Package
Plywood Case Package
Specification
LBR-XGJA-4-H
Trademark
LABOAO
Origin
China
Production Capacity
1000sets/Month

Packaging & Delivery

Package Size
55.00cm * 58.00cm * 50.00cm
Package Gross Weight
62.000kg

Product Description

LABOAO 6-12 Conjoined Glass Fermenter Bioreactor Price Product Description

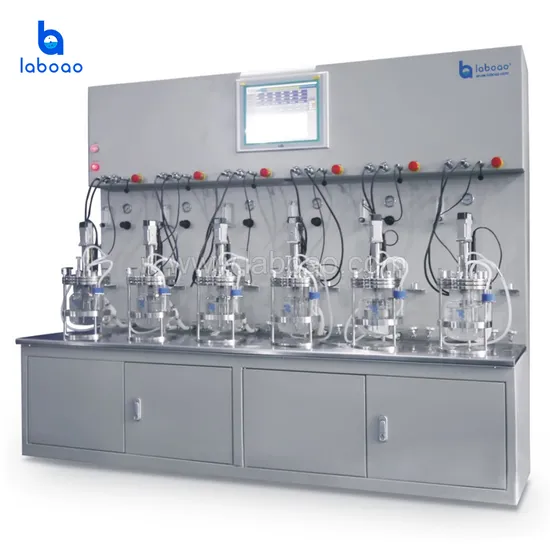

Off-site sterilization six-twelve conjoined glass bioreactor is a set of conjoined laboratory glass fermentation equipment with automatic control, convenient operation and powerful functions, which can meet various purposes of fermentation, such as batch, batch feeding, and even animal cell culture. The color touch screen is used to display all measured values and control parameters, which greatly facilitates the user's operation.

Appiication range
• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;
• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;
• Metabolic flux research and high-throughput screening of highly active mutant strains;
• Comparative studies, such as: isolation and screening of clinical strains;
• Optimization of growth medium for cell lines or high-yield strains;

Feature
1. Siemens PLC control system + vinylon LCD touch screen, is used to display all measured values and control parameters, which greatly facilitates the user's operation. you can use USB for data transmission, sampling and displaying tank data, browsing and analyzing system data, reading settings.
2. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank.
3. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.
4. The structure is compact, and various components can be integrated into the fermentation system.
5. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part, which has a simple structure and stable operation. Detailed Photos
Specification
Model LBR-XGJGG-6 LBR-XGJ-(8-12)H
All Capacity 0.6L/1L/2L/3L/5L/7L/10L
Material 316L stainless steel+borosilicate glass
Mixing method Magnetic/Mechanical stirring Mechanical stirring
Sterilization method off-site sterilization
Basic Configuration Temperature, Speed, PH, DO, Defoaming, Ventilation, Pressure
Extensible configuration (optional) Exhaust O2, CO2 detection, Online detection of methanol and ethanol content, Refill weighing system etc.
