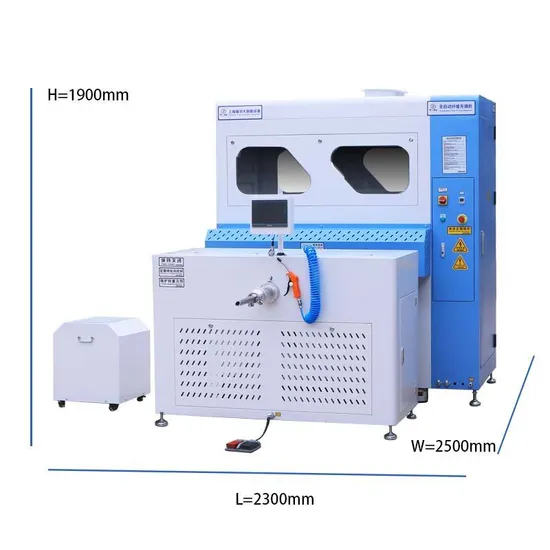

FUDA Small Volume 2 Nozzles 4 Scales Hollow Polyester Staple Ball Fiber Cushion Pillow Vest Jacket Filling Machine with PLC Weighing

Product Description

Product Overview
426D Automatic 2 in 1 Down Staple Fiber Filling Machine. Multi-function 2 Ports 4 Scales Polyester Fiber Filling Machine with Dynamic Weighing Control, whether small grids or large grids good performance, easy to learn and operate, multi-language, Large power gear motor with low noise.
Products Description
Product Advantages

High accuracy	The dynamic error accuracy is ±5%.
Control system - Compiled PLC	Quickly, the communication speed rate: 0.4ms.
Touch screen - HD HMI	Easy to learn and operate, Multi-language, sensitive touch.
Goose Down Filling - Min 0.5g	the feeding of small weights also keeps high precision, the error accuracy is controllable.
Staple Fiber Filling - Max 80g	The large-weight fiber filling is finished in one time, with no clogging.
Large storage volume - 8~10Kg	Small size, large storage. Improve production efficiency.
Gear motor- low noise	Low noise, high torque, long life, and easy maintenance.
Appearance - The Beauty of Simplicity	Compact design, clean white, technology blue.

Product Parameters

Model NO.	2 Heads 4 Scales
Product Name	Automatic Down Filling Machine
Filling Valve Head	Double-Head
Filling Range	0.5-80g
Display Accuracy	0.01g
Nozzle Size	19mm/25mm/38mm
Storage Volume	8-10Kg
Filling Materials	Duck Down, Goose Down, Polyester Fiber, Ball Fiber
Application	Down Jacket, Down Pants, Down Duvets
Daily Capacity	600 plus winter coats
Power Supply	3Ph Ac380v 3.7Kw
Air Supply	0.6-0.8Mpa, 7.5Kw
Display Device	7" Touch Panel
Control System	PLC with 4 Weighing Units
Footprint	2.5*3.5m*2.5m(L*W*H)
Net Weight	510Kg
Gross Weight	750Kg
Transport Package	Wooden Case
Specification	2 Ports 4 Scales
Trademark	FUDA
Origin	Shanghai

Applications
Detailed Photos
Product packaging
Fuda Profile
FUDA factory has incorporated advanced technology into this machine, resulting in low noise levels during operation. This ensures a comfortable working environment for your employees.
Equipped with 2 ports and 4 scales, this goose down filling machine offers enhanced efficiency and accuracy. It is specifically designed to fill goose down, guaranteeing consistent and uniform filling for each down jacket.
Invest in FUDA Fully Automatic Goose Down Filling Machine and streamline your production process. Experience the benefits of increased productivity, improved quality, and reduced labor costs. Upgrade your intelligent filling capacity with this reliable and high-performance machine.
The touchscreen interface allows for simple operation, making it user-friendly and reducing the learning pressure for operators. With its multi-application capabilities, it can handle various filling applications, making it a versatile choice for different down jacket style

---
