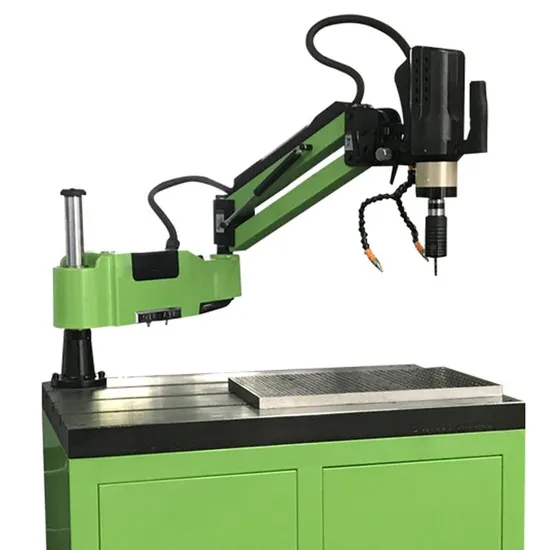

Full Servo Automatic Oilling and Blowing Tapping Machine

Product Description

Product Features 1.Servo drive control, intelligent torque protection.
2.Hidden trachea and oil pipe design, instant fuel injection technology.
3.One-piece design of fuel tank rack saves space.
4.Column, connecting shaft, copper sleeve with bearing.
5.High precision,both adding oil and blowing scraps when tapping could help to keep the screw taps clean,which could highly increase the tapping accuracy.
6.Tough and strong screw taps,which means adding oil and blowing scraps simultaneously to help tapping procedure more smoothly.
7.High tapping efficiency to spare manual work for adding oil and blowing scraps.
Product Parameter

Model	M16	M24	M36
Voltage	220V-600W-50HZ	200V-1200W-50HZ	220V-1200W-50HZ
Tapping Capacity	M3-M16	M6-M24	M6-M36
Max Radius	1000mm	1200mm	1200mm
Highest Speed	312r/min	200r/min	150r/min
Weight	25KG	50KG	50KG
Tapping Chuck	GT12,M3-M16 Standard,Optional	GT24,M6-M24 Standard,Optional	GT24,M6-M36 Standard,Optional
Lubrication Time	0.1-25s
Lubrication Blowing	Infinite
Mobile Workbench	900*600*700mm
Way To Work	Horizontal/Vertical

FAQ
1. Who are we? A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
A:Fastener Insertion Machine, Self clinching Press, Riveting Machine, Spot Welder,Clinching Fasteners.

4. Why should you buy from us not from other suppliers?
A:RSM Machinery CO.,Itd includes fastener insertion machine, self clinching machine, hydraulic steel/ironworker, turret grinding machine ,self clinching system, production line as well as other different kinds of machine tooling and accessories.

5. What services can we provide?
A:Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese

---
