Product Details
Product Description
Product Description

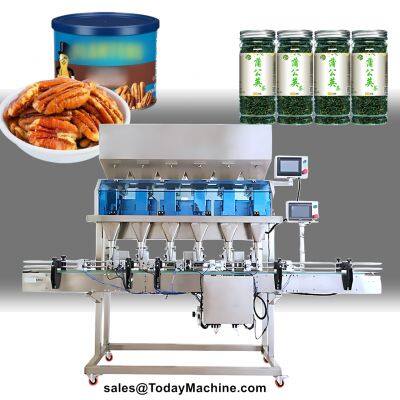

Bottle Weigher Line
A precision packaging system, a linear weighing apparatus is employed to fill containers – be it boxes or bottles – with a predetermined weight of a product. Using a linear or horizontal conveyor belt, containers are transported beneath an array of weighing hoppers where a precisely measured quantity of product is dispensed into each container.
jar filler
Multiple Hoppers: The device boasts an abundance of weighing hoppers, facilitating the simultaneous filling of numerous containers.
Touch Screen Control Panel: Feature an intuitive touch-based interface that simplifies the task of configuring critical variables, such as mass, velocity, and receptacle dimensions.
Auto Correction: The equipment could potentially incorporate an automated calibration feature that compensates for slight fluctuations in the density of the product, thus guaranteeing uniformity in the filling masses.
Variable Speed Control: Boasts a flexible speed control feature, allowing for effortless optimization of conveyor belt speed and increased production efficiency.
INDUSTRIES AND APPLICATIONS
Food and Beverage Industry: Linear weighing machines for containers are used to fill containers with a predetermined weight of food products such as snacks, cereals, nuts, and dried fruits. They are also used to fill bags of flour, sugar, and other baking ingredients.
Pharmaceutical Industry: Linear weighing machines for containers are used to fill containers with a precise weight of pharmaceutical products such as powders, capsules, and tablets.
Cosmetic Industry: Linear weighing machines for containers are used to fill containers with a precise weight of cosmetic products such as powders, lotions, and creams.
Chemical Industry: Linear weighing machines for containers are used to fill containers with a precise weight of chemical products such as detergents, cleaning agents, and fertilizers.
Pet Food Industry: Linear weighing machines for containers are used to fill bags and containers with a precise weight of pet food products such as kibble and dry food.
TECHNICAL SPECIFICATION
Model
| Weigher
|
Circle
| Range
| Error
| Speed
(B/M)
| Power
| Weight
(kg)
| Dimension
(mm)
|
DCSL-1H
| 1
| 1 bottle
| 10-100g
50-500g
100-1000g
200-2000g
500-5000g
| ±2g
| 10-30
| 220V
2kw
| 250
| 2000x900x1890
|
DCSL-2H
| 2
| 1 bottle
2 bottle
| 10-100g
50-500g
100-1000g
200-2000g
| ±2g
| 10-40
| 220V
2.5kw
| 300
| 2000x900x1890
|
DCSL-4H
| 4
| 1 bottle
2 bottle
4 bottle
| 10-100g
50-500g
100-1000g
| ±2g
| 10-40
| 220V
3.3kw
| 350
| 2000x900x1890
|
DCSL-10H
| 10
| 1 bottle
| 10-100g
50-500g
100-1000g
| ±2g
| 20-60
| 220V
3.3kw
| 400
| 2000x900x1890
|
>>
