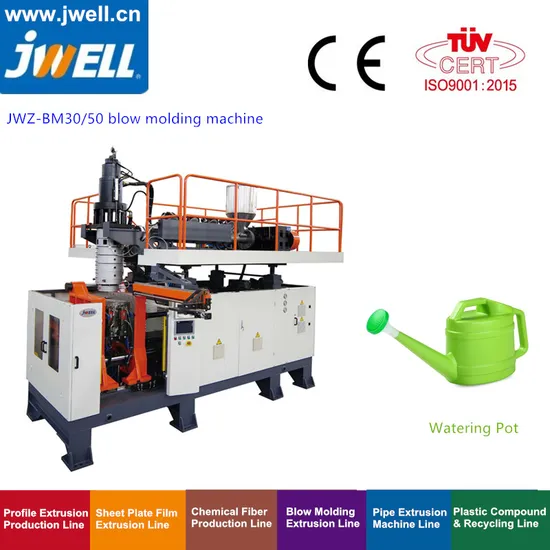

Plastic Flower Watering Can Sprayer Pot Making Extrusion Blow Molding Machine Manufacturer

Product Description

Performance and advantages ·Suitable for producing different kinds of road pyramid, logistic insulation barrels. ·Optional bottom sealing, product eject, core-pulling movement elements. ·Adopt high output extrusion system, accumulating die head. ·Optional Hydraulic Servo control system.
Technical parameters

Model	Unit	BM30	BM50
Max product volume	L	30	50
Dry cycle	Pc/h	600	450
Die head structure	Accumulating type
Main screw diameter	mm	80	90
Max plasticizing capacity (PE)	kg/h	120	180
Driving motor	Kw	37	45
Accumulating volume	L	5.2	6.2
Oil pump motor power	Kw	15	18.5
Clamping force	KN	280	400
Space between platen	mm	400-900	450-1200
Platen size W*H	mm	740*740	880*880
Max. mold size	mm	550*650	700*850
Heating power of die head	Kw	20	28
Machine dimension L*W*H	m	4.3*2.2*3.5	5.6*2.4*3.8
Machine weight	T	12	13.5
Total power	Kw	95	110

Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.
Control system
Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system SIEMENS CPU unit SIEMENS temperature-control unit SIEMENS digital-output unit SIEMENS analog-output unit MITSUBISHI CPU unit JWELL invertor revolving speed-control Schneider electric components

---
