200kv Ray Source Steel Plate Vehicle Safety Inspection System X-ray Scanner with 60mm Penetration High-End Meeting Security Inspection Stations in Public

Product Description

Small medium car scanning machine / vehicle inspection system for Small car security check


Product introduction

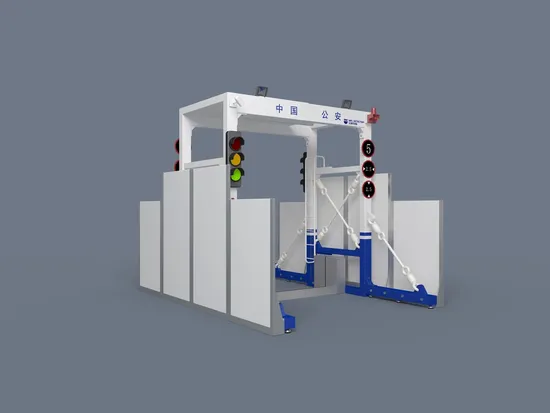

IWILDT-AN 48002800LHM vehicle safety inspection system is specially designed for the security inspection of vehicles in sports venues, high-end meeting security inspection stations in public activity fields and medium-sized logistics cargo transfer stations. It reduces manual time-consuming and laborious safety inspection of small vehicles and container surfaces, and generates detailed images of the structure inside small vehicles through X-ray scanning to check whether there are dangerous terrorists, explosives, drugs, weapons of mass destruction (WMDS) and contraband and other threats.

IWILDT-AN 48002800LHM vehicle safety inspection system uses a 200KV ray source, penetrating force up to 60mm steel plate. A maximum of 120 vehicles per hour are screened in pass-through mode.


Temperature measuring performance

Brand	IWILDT
Type	AN-48002800L
Material	Line source
Ray power	200kV
Color coating	Mirror blue and white
Channel size	4m (W) x 5m (H)
Scanning mode	drive through scanning
Scanning speed	5km / h
Throughput	120 vehicles / hour in passing mode
Absorbed dose	less than 1usv / time
Working site	5m (L) x 5m (W)
Steel penetration	60mm
Spatial wire resolution	steel wire with diameter less than 1.5mm
Resolution of penetrating wire	steel wire less than 3mm can be seen behind 40mm steel plate
Contrast sensitivity	steel sheet less than 1mm can be seen behind 40mm steel plate
Power consumption	6 kW
Warning	three color safety light + siren
Standard	in accordance with the World Health Organization, ICRP 103-2007, Chinese, EU and US regulations

Enterprise honor certificate:

FAQ
Q1: Are you a factory or trading company?
A: We are the biggest professional manufacturer of security equipment with almost 15 years experiences in Hubei china.
Q2: What is your MOQ?
A: Normally MOQ 1pcs and the price is negotiable for large quantity.
Q3: How does your factory do regarding quality control?
A: We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification, Radiation safety certification of FDA.
Q4: What is your after-sale service?
A: 100% guarantee on our product; install instruction and video support; software debugging with remote control support; The whole unit 2 ye
After-sales service:
1. installation and debugging: the supplier shall be responsible for free installation and debugging of equipment on the site of the buyer, and provide free on-site training for operation and maintenance personnel.The theoretical training shall not be less than 1 working day, and the practical operation training shall not be less than 3 working days.
2.technical support: the supplier provides effective technical support, and can optimize the processing procedures and adjust the machine parameters according to the characteristics of processed products.Provide support for the design and application of fixture for processing products.
3. warranty period: after acceptance of the machine, the supplier shall provide 12 months of free warranty, free parts and services within the warranty period, timely and effective service.
4. service time commitment: within 10 hours after the supplier receives the machine tool fault report, the after-sales service personnel will arrive at the site to deal with it.
5.technical support after the warranty period: within 5 years after the warranty period, the supplier shall provide free soft technical consulting services. For example, if the mechanical part of the machine tool fails, the supplier shall provide free soft technical consulting services.
6. supply of spare parts after the expiration of the warranty: after the expiration of the warranty, the supplier can provide the buyer with comprehensive preferential maintenance parts.And repair parts are provided to the buyer at the purchase cost of the supplier.

---
