Zy150 Dft Direct Forming Tube Mill

Product Description

Product Description

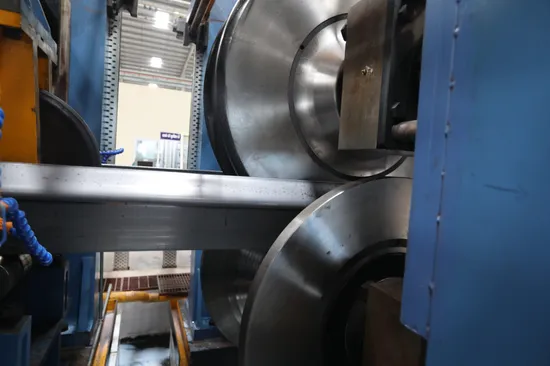

Directly Forming to Square or Rectangular Tube: The Linear cage forming for square and rectangular tubes, can carry out the forming change operation in a very short time and without any replacement of rolls.

Advantage of the line: full automatic operation, Easy adjustment, good weld seam quality. Rigid machine structure. Easy operation and maintenance.
Technical assistance for production, quality control and maintenance by training of operators and document can be provided together with machine supply upon request, which is essential to ensure the highest quality of pipes and productivity.

Basic information
1 .Raw material
Row material: Carbon Steel, Cold or Hot Rolled pre slit strip coils
Yield strength : Max 350 MPa
Coil width: 200mm - 600 mm
Coil O.D.: 1300mm -2200 mm
Coil I.D: 508mm-610 mm-760mm
Coil weight : Max 10tons

2. Finish Products
Square tube: Min 50mmx50 mm, max 150mmx150 mm
Rectangle tube: Min 50x60 mm, max 50x100mm
Wall thickness square & rectangle tube: 2.0mm- 6.0mm
Advantage of the line:
1: Full automatic operation. from the entry line to the packing station,use the advantage technology to save the workers usage to reduce the mainpower on each working postion.
2: Forming change operation in a very short time and without any replacement of rolls, roll position reset time within 30 mins by PLC.
3: Safty operations, Each of the machine operation panel have emergency stop button and all the operation panel are commutation with each other. 4:Easy operation and maintenance.

Our Company
Zhangjiagang Zhongyue Metallurgy Equipment Technology Co.,Ltd is located in Xiangshan Road,Jiangang Town,Zhangjiagang City,Jiangsu Province,China.With the registered capital of RMB20,000,000 yuan,the company specialize in manufacturing high-frequency precision welded pipe lines,H-Beam steel pipe line,slitting machine,cold roll forming machine,cold rolling machine,angle steel machine,cold cutting saw machine etc...At present,the annual production capacity is more than 150 sets.
During more than ten years of continuous effective development, the company has already become quite well competitive in term of market share,technology,human resources and geographical location in its field.To maintain its competitiveness in the ever fierce competing market, the company has kept upgrading itself by improving innovation system ,establishing human resources platform, building harmonious relationship with customers,improving quality of product and full-range of services.Hence,now,as one of the most popular and favorite vendors of our customers,we are the most advanced and play a leading role in field of domestic market for product quality and achievement in new products R&D and market development.
The company products are widely applied in the industries of welded pipe manufacturing,sports products,fitness equipment,medical apparatus and instruments,children's goods,furniture,household electrical appliances,vehicles,ship building,petroleum transportation and power station etc...

---
