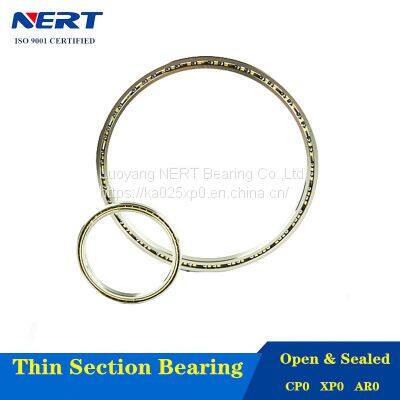

KB047CP0 Thin Section Bearings Inch Size KB047CP0 Thin Section Open Bearings thin-walled bearings NKB147CP0
KB047CP0 ultra thin section radial contact deep groove bearings 120.65 x 136.525 x 7.938 mm, Thin Walled Bearing KB047CP0 With Cross Section 5/16 x 5/16 inch, id: 4.75 inch, OD:5.375 inch, Size: 4.75 inch x 5.375 inch x 0.3125 inch. KB047CP0 Radial contact ball bearing belongs to KB SERIES of thin section ball bearings, the KB SERIES include KBCP0, KBXP0 and KBAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon balls or steel balls as requested. The bore size of KB SERIES are ranged from 2 inches(50.8mm) to 20 inches(508mm) and the outer diameters are arranged from 2.625 inches(66.675mm) to 20.625 inches (523.875mm), while the Cross Section is constant, that is 0.3125 inch (7.938mm).
Parameters:
Bearing Type: Ball
For Load Direction: Radial Contact
Construction: Single Row
Seal Type: Open
Cross Section: 5/16 x 5/16 inch
Part Number: KC047CP0
For Shaft Diameter 4.75 inch (120.65 mm)
Bore Dia (d) 4.75 inch (120.65 mm)
For Housing ID 5.375 inch(136.525mm)
Outer Dia (D)5.375 (136.525mm)
Width (B) 0.3125 inch(7.938 mm)
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 ℃
ABEC Rating ABEC-1
Net Weight (kgs) 0.163
About Our Stock
For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.
Applications:
Our BOBI products are widely used in the following fields:
Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
