Zyd Double-Stage Vacuum Circuit Breaker Oil Purification Machine

Product Description

Product Description

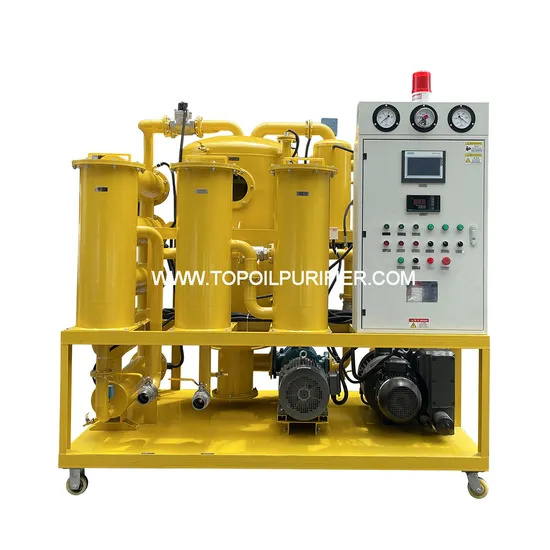

Product Show:
ZYD Double-stage Vacuum Circuit Breaker Oil Purification Machine Application:
Series ZYD Double-Stage Vacuum Transformer Oil Purification Systems, with modern advanced technology, is used for dehydration and degasification of transformer oil or other electrical insulating liquids such as silicone fluids. The ZYD Process is able to increase and maintain the oil's dielectric strength by the removal of free and soluble water, free and dissolved air and gases and other particulate matter. The standard ZYD system is designed for processing oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers). Series ZYD oil purifier can be used as an independent vacuum source with functions of vacuum drying and vacuum oiling.
Features: 1.The plant is delivered ready for operation.
2.Degasification, dehydration and filtration processes to purify various kind of insulation oils in electrical transformers and circuit breakers through one or several passes.
3. There are two kinds of pumps in the vacuum system of plant ZYD (one is the vacuum pump, and the other one is the roots pump), which can improve the vacuum value highly, ensuring that the water content of the treated oil is less than 3 ppm.
4. All oil treatment plants, including series ZYD, are equipped with an automatic Anti-Foam Control System.
5. The plant is equipped with built-in control and safety devices, which provide maximum operating security.
6. Minimized power consumption through optimized degasification (an excellent efficiency factor).
7. Standardized filter housing for 5 micron, 20 micron and 80 micron filter cartridges.
8. Automatic supervision of the degree of contamination of the fine filter cartridges
9. ZYD can evacuate the electric equipment separately, such as the transformer. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.
10. Reliable and automatic, the machine adopts the double-infrared liquid automatic controller, pressure automatic-protector which can make sure the machine works online for 150 hours continuously without person.
11. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor so as to avoid heating with no liquids, pumping with no liquids, oil leakage and electricity leakage. If there is any fault, the machine will be power off automatically.
12. Functions of vacuum drying and vacuum oiling, as well as live-line working on site.
Technical Parameters:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/min	30	50	100	150	200	250	300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working vacuum		MPa	-0.08 ~ -0.099
Working Pressure		MPa	≤0.3
Temperature Range		ºC	20 ~ 80
Power			AC380V/50HZ/3Ph 5 wire (can be customized)
Working Noise		dB(A)	68	70	70	75	75	75	75
Heating Power		kW	24	36	72	96	120	140	180
Total Power		kW	27	40	80	104	130	150	196
Inlet/Outlet		mm	φ25	φ32	Φ38	Φ45	φ50	φ60	φ63
Weight		kg	600	800	1200	1400	1500	1700	1900
Overall	L	mm	1550	1650	1900	2000	2100	2150	2200
	W	mm	1100	1250	1350	1400	1500	1550	1600
	H	mm	1850	2000	2100	2050	2150	2150	2200
Index after filtering	Breakdown Voltage	kV	≥75
	Moisture content	PPM	≤3
	Gas content	%	≤0.1
	Impurity size	micron	≤1 (no free carbon)
	Value β	%	98
	Cleanness	NAS1638	≤ 6

Certificate:
Payment Terms:

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

WELCOME YOUR INQUIRY

---
