Fully Automatic Large Capacity Heavy Duty Paper Shredder Normal Office Industrial Heavy Duty Box Strip Cut Paper Shredder

Product Description

1. Introduction to the machine
This machine uses the scissor-type shearing principle, feeds materials through the conveyor belt, and the rotating knife and the fixed knife cut, which can quickly cut the materials entering the machine. The cutting specifications can be customized according to requirements, and the thinnest can be cut into 2MM wide strips. It can cut various cotton products, various types of metal-free medical waste, fibers, non-woven fabrics, cartons, paperboards, various printed paper products, office paper, and various sheet plastic films, etc. It has the characteristics of high efficiency, very little dust, and low noise.
2. Machine parameters
NO. Accessories Model QTY. Remark
1 Shearing motor 11KW-8 (three-phase 380V/50HZ) 1 3 conveyor belts
2 V-belt Bx2600mm 3
3 Conveyor motor 1.5kw-4 1 2 conveyor belts
4 Reducer 100 type 1
5 Shearing motor pulley B3x500Bx100mm 1
6 Blade width 420mm 1
7 Distribution box Dual control + power indication + overload protection 1
8 Input belt 1400mm 1
9 Output belt 1400mm 1
10 Moving knife Gcr12mov420x65x20mm 4 Adjustable
11 Fixed knife Gcr12mov440x55x15mm 1 Double-edged
12 Feed roller Steel roller 3
13 Shearing thickness 1-30mm
14 Crushing width 2, 4, 6mm wide strips Other specifications can be customized
15 Installation dimensions 3200mmx1000mmx1150m1
16 Weight 650KG
17 Others With a set of special tools

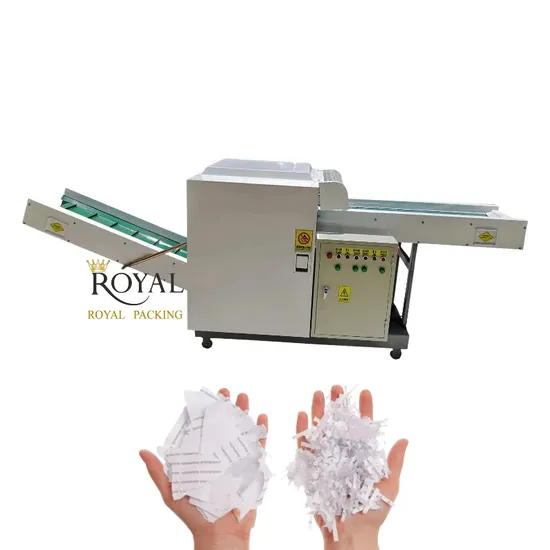

Machine Photos:

---
