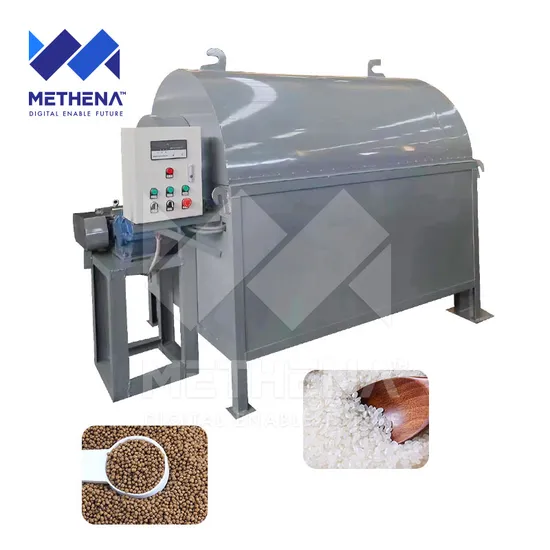

Mtn Coffee Bean Biomass Chip Dryer Machine 6 Ton Electric Peanut Corn Seed Rotary Drum Drying Equipment

Product Description

MTN Sand Chicken Manure Dryer Machine Rice Maize Dryer Machine Corn Grain Rotary Drum Dryer Price Product Description
Introduction
Grain drum dryer uses the rotary convection drying process to efficiently dry grains using heat sources and ventilation systems. It is easy to operate, highly applicable, can quickly reduce grain moisture, and ensure grain quality. It is an indispensable and important equipment in agricultural production.
Application
It can be widely used in drying materials in the fields of river sand, sludge, coal slime, sawdust, sand, tofu dregs, chicken manure, organic fertilizer, feed, etc.
Features
1. With hot air as the drying medium and a circulating drying process, the material is evenly and fully heated and hydrated, and the quality is good after drying.
2. The heating system is relatively advanced, and the material is dried after heat energy conversion.
3. Equipped with automatic online temperature and humidity measurement devices, the degree of automation is greatly improved, and the drying uniformity is high.
4. The working process can be automatically controlled, the machine can be automatically shut down, the operation is simple, labor is saved, and labor costs are greatly reduced.
Structure
Parameters

Model	Dimensions of the drum (Including feeder)	Power (KW)	Heating power (KW)	Wetted fan(W)	Reducer	Overall dimensions(mm)
MTN-200	800*1800*3mm	1.5	30	370	/	3000*1000*1450
MTN-300	800*2600*3mm	2.2	30-40	370	ZQ200	3800*1000*1450
MTN-500	1000*2800*3mm	3.0	40-50	370	ZQ250	4200*1200*1600
MTN-1000	1200*3400*4mm	4.0	60-80	550	ZQ250	4800*1500*1700
MTN-2000	1500*4400*5mm	7.5	80-100	750	ZQ350	6000*1800*2100
MTN-3000	1500*6000*5mm	11.0	120-150	1100	ZQ350	7800*1800*2100
MTN-5000	1800*6600*8mm	15.0	180-200	1500	ZQ500	9300*2300*2500

Detail Display
Product Photograph

---
