| US$442.00 | 1 Piece (MOQ) |
| Gauge pressure | |
| Range ( Unit: bar ) | Price (Unit: USD) |
| -0.6~0.6bar | 442 USD |
| -1~0bar | 442 USD |
| -1~1bar | 442 USD |
| -1~1.6bar | 442 USD |
| -1~10bar | 442 USD |
| -1~16bar | 442 USD |
| -1~25bar | 442 USD |
| -1~40bar | 442 USD |
| -1~60bar | 442 USD |
| -1~600bar | 442 USD |
| 0~1bar | 442 USD |
| 0~2.5bar | 442 USD |
| 0~6bar | 442 USD |
| 0~10bar | 442 USD |
| 0~16bar | 442 USD |
| 0~25bar | 442 USD |
| 0~60bar | 442 USD |
| 0~100bar | 442 USD |
| 0~160bar | 442 USD |
| 0~200bar | 442 USD |
| 0~250bar | 442 USD |
| 0~300bar | 442 USD |
| 0~400bar | 442 USD |
| 0~500bar | 442 USD |
| 0~600bar | 442 USD |
| 1 | 2 | 3 | 4 | 5 | 6 |
| Peak Value H1:Display peak value L0:Display valley value | Backlight Backlight on after pressing the button | Zero calibration Under no pressure conditions One click reset | ON/OFF One click power on/off | Unit switch bar,kpa,mpa, psi,mmHg,kgf/cm2 | Back Space Return to the main function menu |

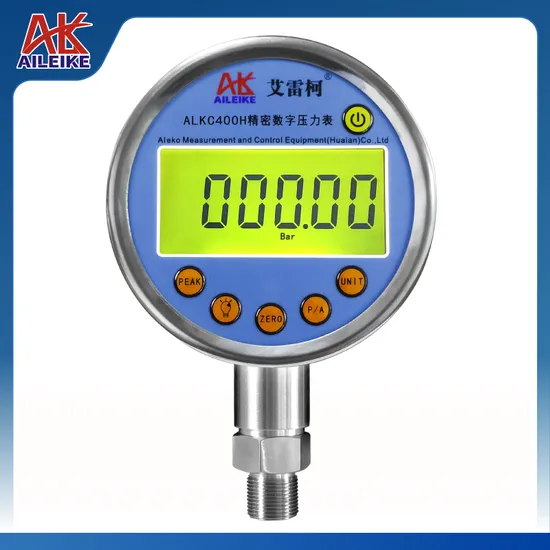

| Product name | Precision digital pressure gauge |
| Model | ALKC400H |
| Measuring range | -1~0~600bar |
| Accuracy | 0.05%F.S |
| Switching between 6 units | Bar,mpa,kpa,mmHg,psi,kgf/cm2 |
| Customized processing | Yes |
| Overload capacity | 1.2 times the upper range limit |
| Connection method | The default thread size is M20 × 1.5. If you need other thread sizes such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized |
| Environment | -10~50ºC |
| Electric source | External charger 220VAC 50Hz 3VA |
| Charging Voltage | 8.4V |
| Built-in Lithium Battery | 7.4V 1300mAh |
| Shell material | 304 stainless steel |
| Measuring medium | Air,water,oil and other non corrosive media for stainless steel |
| Weight | Approximately 0.6kg(pressure gauge body only) |
| Weight of instrument box | Approximately 0.8kg |
| Instrument box size | 260×215×110mm |
| Product weight | Approximately 1.7kg (packaging material iscardboard box) |
| Product packaging size | 290×260×135mm |
