| US$52,700.00-55,835.00 | 1 Set (MOQ) |

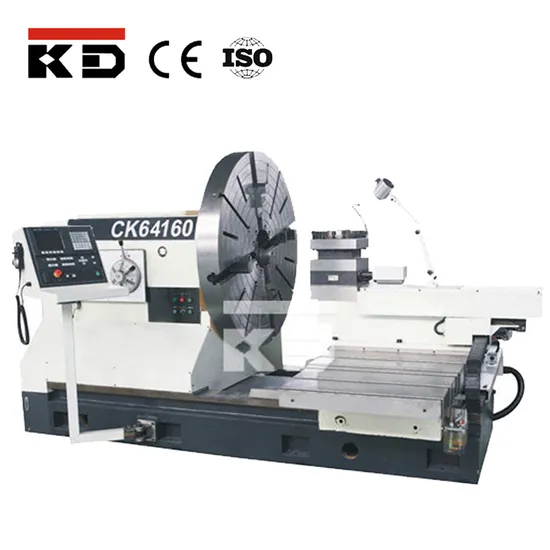

| MODELS | CK64160E |
| CAPACITY | |
| Max.cutting dia of disc parts | Ф1500 |
| Max.swing over carriage | Ф1000mm |
| Width of bed | 1100mm |
| Max. length of workpiece | 500mm |
| SPINDLE | |
| Spindle nose | A2-15 |
| Spindle bore | Ф130mm |
| Spindle tapper | Metric Ф140 1:20 |
| Steps of spindle speed(manual) | 2 steps (manual) |
| Range of spindle speed | 2.5~34, 20~270rpm |
| FEED | |
| Rapid feed for axis Z | 6m/min |
| Rapid feed for axis X | 12m/min |
| TRAVEL | |
| Max travel of Z axis | 480mm |
| Max travel of X axis | 800mm |
| TOOL POST | |
| Tool post stations | 4 |
| Distance from the main shaft center to the cutter installation surface | 50mm |
| OTHERS | |
| Min.input | 0.001mm |
| Main motor power | 22kw |
| Coolant pump power | 250w |
| Overall dim,emsions(LxWxH) | 3500x2600x2100mm |
| Net weight | 11000kg |
