Qshi Orange Peel Electric-Hydraulic Rock Stone Grab Bucket

Product Description

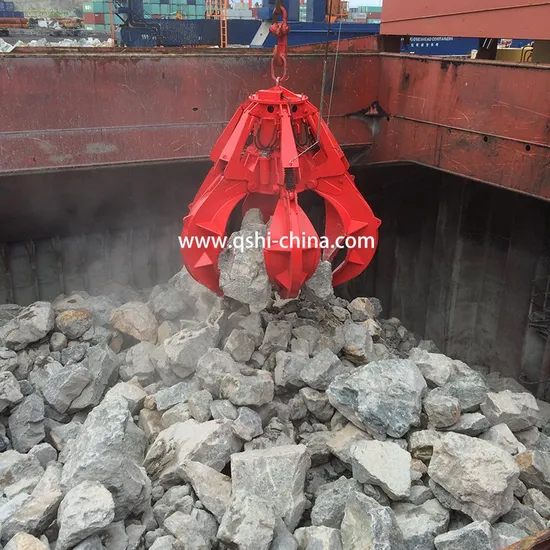

QSHI orange peel electric-hydraulic rock stone grab bucket
Description
QSHI electric- hydraulic orange peeel grab is mainly designed for handing bulk material in blocks, particles and irregular sharps, such as coke,pig iron, steel scrap,slag,garbage and rock etc. It is widely used on ports, steel plants and garbage treatment plants, with tower cranes, ship unloaders, traveling cranes and other type of cranes. The grab has its own hydraulic system , all key elements are imported well-known brands to ensure high performance of grab. It is simple in structure and easy to operated.
Drawing
Parameter

Model	Power		Dead weight(kg)	SWL(t)	Capacity(m³)	Max working pressure(Bar)	No.of peels	Close time(S)
QSEH	380V50Hz	440V60Hz						380V50Hz	440V60Hz
QSEH22.0-1000	22	26	2960	6	1	180	6	11	9
QSEH30.0-1250	30	35	3980	7.8	1.25	180	6	14	12
QSEH30.0-1600	30	35	4270	9.1	1.6	180	6	14	12
QSEH30.0-2000	37	44	5980	12.2	2	200	6	15	12
QSEH37.0-2500	37	44	6170	13.8	2.5	200	6	15	12
QSEH37.0-3200	45	54	8280	18	3.2	200	7	20	13
QSEH37.0-4000	45	54	8630	20.7	4	200	7	20	13
QSEH45.0-5000	45	54	9180	24.2	5	220	7	23	17

Pictures
About us
QSHI supplies different kinds of products. High quality and favorable price.
We're pleased to get your Inquiry and we will feedback ASAP.
We stick to the principle "Quality First, Service First, Continuous Improvement and Customer Satisfaction" and aim at "Zero Defect Zero Complaint".
To perfect our service, we provide products with good quality at reasonable price.
Our Service
Being a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.
FAQ
ORDER INTRODUCTION:
Pls kindly send us your detailed specifications as follow if you are interested in our grab product.
1. What's the SWL of your crane?
2. What's the type of your crane?
3. What's the working condition of grab?
We will offer you the best suitable solution with best price and quality.
These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!

---
