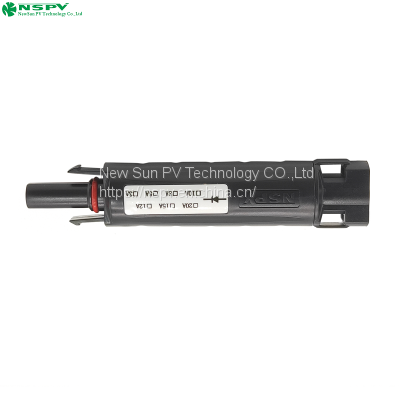

NSPV Solar Waterproof Diode Molding Solar Blocking Diode Connector

Product Details

Product Description

Product Description
Essential details
Warranty:
2 years
Place of Origin:
Anhui, China
Brand Name:
NSPV
Model Number:
1000D-1037
Product name:
4D0 Solar Diode Connector
Insulation material:
PPE
Pin dimensions:
4mm
Rated voltage:
1000V DC
Rated current(Without Diode):
30A
Ambient temperature range:
-40℃...+85℃(IEC)
Degree of protection:
IP67
Flame class:
UL94-V0
Wire size range:
2.5~6mmsq(10AWG~14AWG)

Materials
Insulation	PPE
Color	Black
Contact material	Copper
Electrical Data
Rated current	6A-12A
Rated voltage	1000V DC
Contact resistance	≤0.5mΩ
Wire size range	2.5~6mmsq(10AWG~14AWG)
Environmental
Degree of protection	IP67
Standards	TUV
Ambient temperature range	-40°C until +85°C
Material RTI	110°C
Flame class	UL94-V0
Safty class	2
Pin dimensions	4mm

---
