R16 2sc Two Wires Compact High Pressure Hydraulic Rubber Hose

Product Description

Product Description Wire Braided Hydraulic Hose SAE 100R16
Inner tube: oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braid
Cover: oil, abrasion and weather resistant synthetic rubber
Working temperature: -40ºC~+100ºC
Applications: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils, fuels, lubrication, emulsion and hydrocarbons etc. It is used for hydraulic systems in coal mine, petroleum, engineering machinery, shipping, machine tool equipment, metallurgy, agricultural machinery and construction machinery.

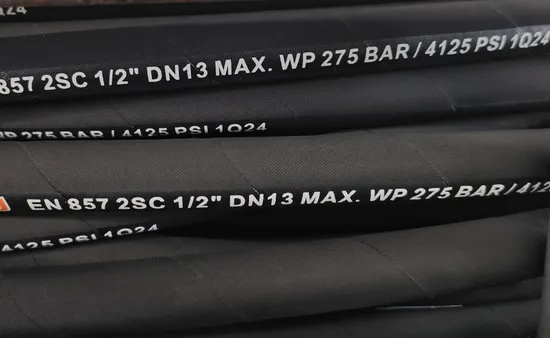

Detailed Photos
Product Parameters

Dash Size	DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Mini. B.R	Weight	Length
		inch	mm	mm(Max)	mm	MPa	psi	MPa	psi	mm	kg/m	metres
-4	6	1/4"	6.3	12.3	13.1	40	5800	160	23200	50	0.27	50/100
-5	8	5/16"	8	13.3	15	35	5075	140	20300	57	0.3	50/100
-6	10	3/8"	9.5	15.9	17.3	33	4785	132	19140	65	0.42	50/100
-8	13	1/2"	12.7	19	20.4	27.6	4000	110	16000	90	0.52	50/100
-10	16	5/8"	16	22.6	24	25	3625	100	14500	100	0.63	50/100
-12	19	3/4"	19	26.3	27.8	21.5	3118	86	12472	120	0.8	50/100
-16	25	1"	25.4	34	35.6	16.5	2393	66	9572	150	1.22	50/100

Certifications
Packaging & Shipping
Company Profile Shandong Hairun Rubber & Plastics Co., Ltd. has been in hydraulic hose manufacturing and exporting for decades. It's a high-tech enterprise which is located in the Industrial Zone of Zaozhuang City, Shandong Province.
Shandong Hairun covers an area of 60,000 square meters. With more than 100 sets of wire braiding and spiral machines, we can manufacture 15,000,000 meters hydraulic hoses and industrial hoses per year. The factory has over 210 experienced workers and technicians. Advanced production and testing equipment make us provide high and stable quality hoses to buyers.
Products of Shandong Hairun mainly include: Hydraulic Hose (SAE100 R1AT/EN853 1SN, SAE100 R2AT/EN853 2SN, EN857 1SC/2SC, EN856 4SH/4SP, SAE100 R3/R6/R5/R7/R8, SAE100 R16/R17, R12/R13/R15)
Car Wash Hose, Industrial Hose, Fittings, Hydraulic Hose Assemblies, etc.
The hoses manufactured by Shandong Hairun have a good reputation for advanced production techniques and strict quality control. More than 90% of the products are exported to North and South America, Middle East, Russia, Europe, South East Asia.
Whether you need high-performance hoses for critical systems or standard hoses for others, Shandong Hairun Rubber's products can meet your demand. Welcome to China and visit our factory.
Our Advantages Quick Delivery, High quality, Very good prices.
Quality Control

---
