Blanket Cardboard Canton Cutting Machine

Product Description

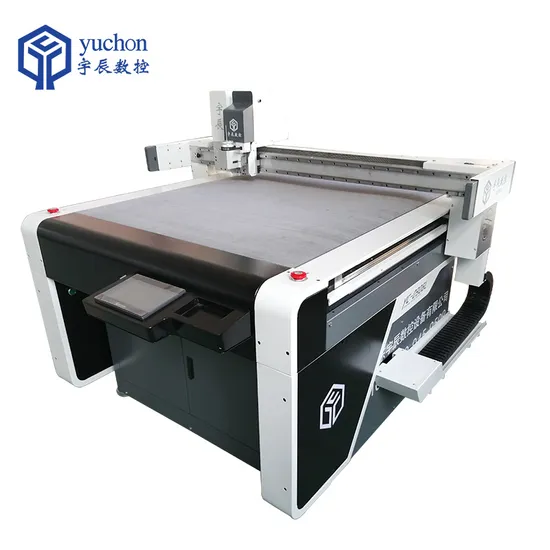

Advertising CNC Digital Cutter Kt Board/PVC/ Acrylic/ Silk Nylon Banner Cutting Machine Without Laser
Model: YC-1625A Machine size can be customized Brand: Yuchen
Applicable cutting materials: KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
Functions: cutting
Configuration: oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position
Parameter:

Model	YC-1625A	YC-1630A	YC-1830A
Working area	2500×1600mm	3000×1600mm	3000×1800mm
Operation properties	Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device	Infrared induction is used, sensitive response, safe and reliable
Maxi cutting speed	1200mm/s
Translational velocity	1500mm/s
Applicable materials	KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
Multifunctional head	oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position
Cutting thickness	0.1-10.0mm(subject to the material cutting)
Cutting tolerance	±0.1mm
Transmission interface	Network transmission
Transmission system	Motor:Panasonic Linear rail:SMTYCC
Fixed mode	Vacuum absorb
Supply voltage	AC 220V 380V±10%,50HZ
Rated power	11KW

---
