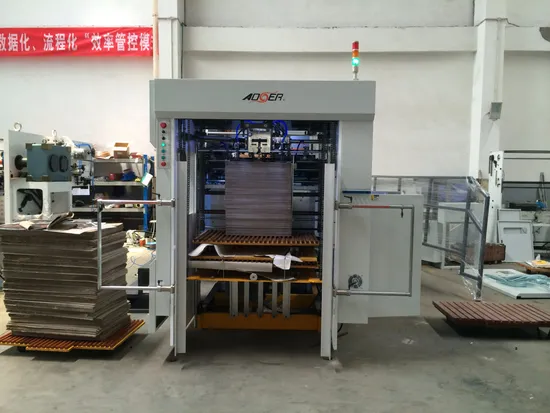

Corrugated Paper Automatic Die Cutting Machine (AEM-1080)

Product Description

Advantage:
1 Complete design, accurate installation, high stability, high security, low noise.
2 Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
3 High precision intermittent mechanism, high cutting precision, running steadily.
4 Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
5 Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
6 Automatic pressure adjust system, pressure digital display.
7 Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
8 Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
9 Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
10 Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
11 Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
12 Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
13 Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
Parameter:

Model	AME-1080
Max paper size	1080 x 780
Min paper size	400 x 330
Max cutting size	1075 x 770
Die frame inner size	1100 x 790
Cutting plate size	1080 x 780
Min gripper needle size	7
Cutting precision	≤±0.1
Max cutting pressure	300
Max cutting speed	7000
Pre-stacking height	1550
Collection stack height	1400
Application
White board	0.1~2
Corrugated paper	<4
Main motor power	11
Heating area power
Total power	17.8
Dimension	4880(+1650)x2100(+1600)x2350
Weight	14
