Semi automatic Plastic Bottle Blowing Molding Machine / Blower System

Product Description

Product Description
Semi automatic Plastic Bottle Blowing Molding Machine / Blower System
Product Description
Specifications:

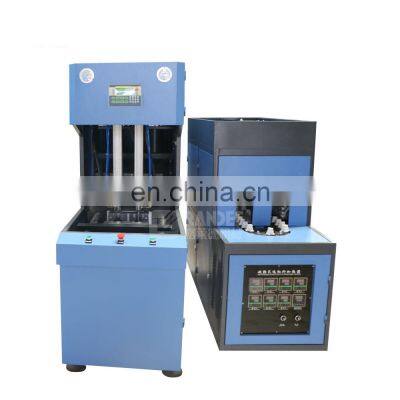

GD-880 Semi-automatic water bottle blowing machine
CE approval
Speed: 700-800pcs/h for 500ml pet bottle
Volume:220-2000mL
Brief introduction of water bottle blow molding machine:
GD semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.01-25L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate.
Main technical parameter:

Type	Item	Unit	GD-880 semi automatic blow molding machine
Container	Product material	/	PET
	Number of cavities	L	2 cavity
	Theoretic output	BPH	800BPH
	Max bottle height	mm	450
	Max bottle diameter	mm	35-220
Molding	Clamping force	T	20
	Clamping stoke	mm	230
	Max stretching stroke	mm	380
	Max mould thickness	mm	380
Auxiliary system	High air compressor		1.2m3/30KG
	Air dryer		1.0m3/30KG
	Air filter		2.0m3/30KG
Main machine electricity	Voltage standard	V/Hz	380v/3PH/50Hz or special order
Main machine electricity	Total power	KW	15
Machine size and weight	Machine weight	T	0.82
	Blow molding machine dimension	cm	14860213
	Perform oven	cm	13761134

Machine show
Bottle Preform Preheating datas setup interface
Heater
2 cavity mold
Detailed Images

Washing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
	Filling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
	RO System Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
	Full automatic sleeve labeling machine Capacity: 100-350bottles/min can be choosed Label material: PVC PET OPS,etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Automatic L PE Film Shrink Packing Machine shrink film material: PE Maximum packing size: 420300350mm Max. sealing size: 650mm Level of conveyor: 950±30mm Maximum shrink temperature: 160-260℃ Capacity: 8-12packages/min Power: 26KW/16KW Weight: 1500KG

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
