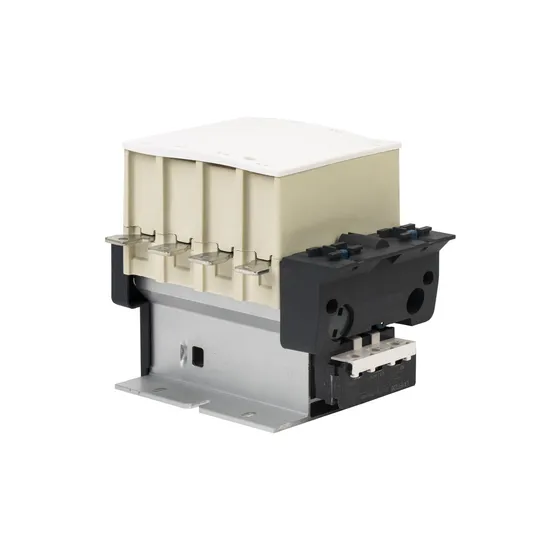

Tesys 225A Magnetic AC Contactors with 220V/380V/415V

US$37.00 100 Pieces (MOQ)

Basic Info.

Model NO.
JLC1-F115
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
115~800A
Type
Ac Contactors
Installation
DIN Rail
Contact
Silver
Kits
Cooper
Tip
Silver
Design
Shneider Design
Ampere
115-630A
Certificate
CE
Shell
High Quality Plastic
Warranty
18 Month
Terms
Fob
Transport Package
4PCS/CTN
Specification
LC1F225
Trademark
CNJUHO
Origin
Zhejiang
HS Code
8536300000
Production Capacity
100000/Year

Packaging & Delivery

Package Size
17.00cm * 12.00cm * 18.00cm
Package Gross Weight
5.000kg

Product Description


1.Application: JLC1-F/CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current up to 3150A, for making, breaking,frequently starting&machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor ,star-deltastarter. With the thermal relay,it is combined into the electromagnetic starter
2.Main parameter
Technical Data
Part No. conventional thermal current Ith(A) Rated Working urrent control rated power of
3phase squirrel-cage motor Pe(KW)		 Weight
(kg)		 Mechanical Life
380V 660V 380V 660V operation frequency (Hz)
JLC1-F115 200 AC-3 115 65 55 80 3.6 1200 300
AC-4 52 49 25 45 150
JLC1-F150 250 AC-3 150 80 75 100 3.7 1200 300
AC-4 60 57 30 51 150
JLC1-F185 275 AC-3 185 95 90 110 4.6 600 300
AC-4 79 69 40 63 150
JLC1-F225 315 AC-3 225 115 110 129 4.7 600 300
AC-4 85 82 45 75 150
JLC1-F265 350 AC-3 265 150 132 160 7.1 600 300
AC-4 105 98 55 90 150
JLC1-F330 400 AC-3 330 185 165 220 8.5 600 300
AC-4 117 107 63 100 150
JLC1-F400 500 AC-3 400 225 200 280 8.5 600 300
AC-4 138 135 75 129 150
JLC1-F500 700 AC-3 500 265 250 335 10.8 600 300
AC-4 147 145 80 140 150
JLC1-F630 1000 AC-3 630 330 335 450 17.4 600 300
AC-4 188 170 100 160 150
3.We commit:
4.Office and working department:
5.Certificate:
6.shipping:
