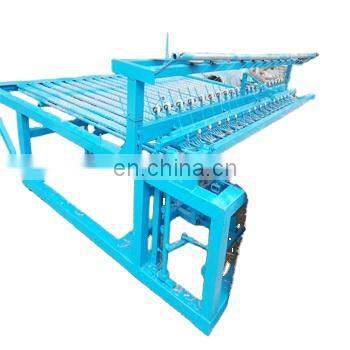

bamboo curtain mat weaving making machine silver reed mat knitting machine
reed rat knitting machine is a new type of building material and agricultural machine, mainly applied to reed mat and mattress.
The machine consists of the five parts of knitting device, output mechanism, cutting device, feed system and power supply system etc.
Complete quality guarantee enables the machine the characteristics of reasonable structural design, proper power matching, complete corollary facilities, simple operation, high production efficiency, low costs, high automatical and convenient application and maintenance.
Mattress produced is smooth, clean, pleasant and long lasting. Of healthcare function, it’s more and more polular.
Specifications:
Item
| 1m
| 1.5m
| 2.0m
| 1m intensified
|
External dimension
| Total length
| 12m
|
Total width
| 2.05m
| 2.55m
| 3.05m
| 2.05m
|
Total height
| 1.36m
|
Total weight
| 3000kg
| 3800kg
| 4600kg
| 3200kg
|
Power configuration
| Host machine
| 2.2kw
| 2.8kw
|
Cutting
| 1.5kw
| 2.2kw
|
Winding
| 0.75kw
|
Feeding frequency
| 18-20 times/min
| 16-18 times/min
|
Interval between lines
| Adjustable within 100mm
|
Needle gauge
| 30mm
|
Parameters of reed mat
| Width
| 980m
| 1480m
| 19800m
| 1000m
|
Thickness
| 20-28mm
| 30-100mm
|
|
|
|
|
|
|
