Basic Info.
Model NO.

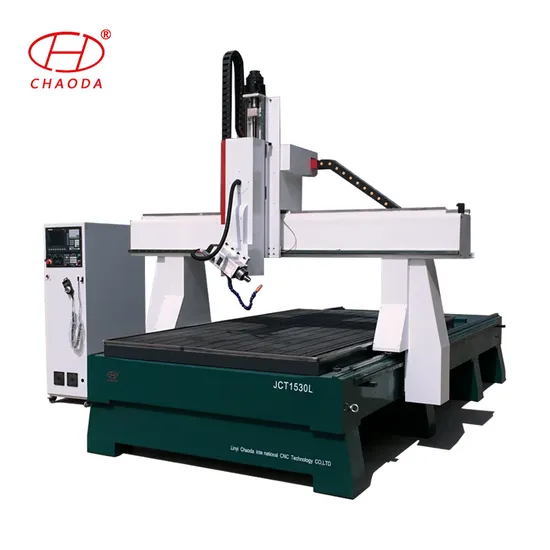

JCT1530L 4 axis
Spindle Number
Single-Spindle
Certification
CE, ISO, BV, TUV
After-sales Service
Life Time
Name
China CNC Router for Large 2D 3D Sculptures, Figure
Function
Produce 2D, 3D Decoration Products, Big 3D Sculpture
Xyz Working Size
1500*3000*500mm(Customized)
Rotary Working Size
1000mm Diameter, 2500mm Length(Customized)
Table Surface
Aluminium T-Slot with Clamps
Pindle Power
9kw Air Cooling Spindle
Working Mode
Japan Yaskawa Servo Motor and Driver
Working Voltage
3 Phase AC380V /220V
Operating System
4 Axis Weihong Control System
Transport Package
Wooden Case Packages
Specification
working size diameter 1000mm, length 2500mm
Production Capacity
800sets/Year
Product Description
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Advanced Ncstudio control system, very stable and easy to operate.
| Model No. | JCT1530L |
| Flat working size | 1500*3000*500mm |
| Rotary working size | 1000mm diameter, 2500mm length |
| Lathe bed structure | T-extrusion, Thick Steel frame |
| Table | Removable, T-slot with clamps |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Reposition accuracy | ±0.02mm |
| Max. travelling speed | 0-60000mm/min |
| Max. working speed | 0-30000mm/min |
| Spindle | 6kw air cooling |
| Driving system | Japan YASKAWA servo motor and driver |
| Operating system | 4 axis Ncstudio with Screen |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Working materials | Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc. |
1. Sample testing before shipment 2. Provide 2 days free training for each machine 3. 12 months warranty for each machine 4. Friendly English version manual and operation videos for studying 5. Free technical support by phone,email,chatting or remote 6. Engineers available to service machinery overseas
>>
