Car Small Scissor Lift 1.2m Auto Repair Lift

Product Description

brand	ANGE RHEAS	model	YJS-JSZW025
voltage	220v/380v/110v/415v	Motor Power	2.2KW
Machine Specifications	Lifting 1.2 meters/lifting 4 tons	Applicable models	Sedan/SUV/Business Van/Pickup

Reasons to choose us
1. The machine has CE certification to ensure quality issues.
2. The maximum lifting capacity of the machine is 1.2 meters and the load-bearing capacity is 4000KG.
With three or four cylinder power, the machine will be more stable during operation.
4. Equipped with a safety mechanical lock, the descent can be stopped at any time in the event of an accident to ensure safety first.
5. The power supply voltage can be specially customized, and the machine color can also be specially customized.
6. The waterproof effect is remarkable and can be used for car cleaning.
Mid-rise Scissor Lift is floor surface mounted giving a low profile of just 110mm.
It is the perfect lift for shops and wheel service specialists that need extra lifting height.
This portable lift easily raises a car or SUV to a comfortable working height.
Movable with portable pull handle,also Movable power unit cart / box.
Pneumatic & electric lock release for optional.
100 mm unit folded height is convenient for carsto cross over.
High polymer polyethylene slide blocks, wear-resistance.
More details,please contact us freely.
1. Top Limit Switch
2. Feet-protection Safety Guardrails
3. Prevent Rollover
4. Reinforcement Plate of Upper Cover
5. Laser cutting integrated base
6. Power Arm
7. Slave Cylinder Return Oil System
8. Explosion-proof Valve
9. Oil Injection Hole

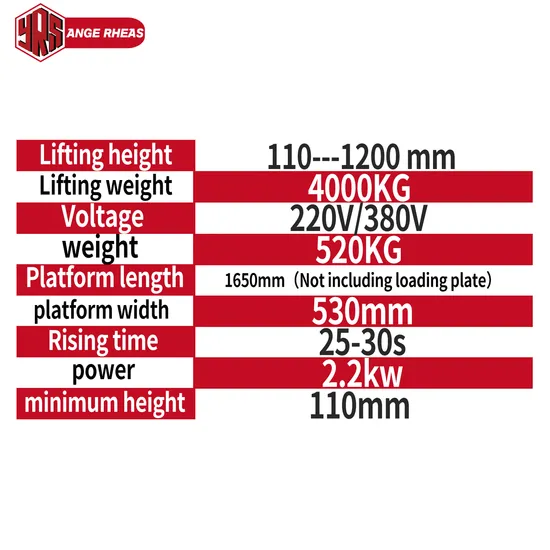

Product specifications
Single platform length 1650MM (excluding the vehicle board), single platform width 530MM
Total platform length 1650MM (excluding the vehicle board), total platform width 1860MM
Minimum height 110MM, maximum height 1200MM
Load bearing 4000KG, four-cylinder power,
The whole machine is made of manganese steel, the arm thickness is 16MM, the solid straight arm density is increased to prevent rust
The machine can be moved at any time and is easy to carry

---
