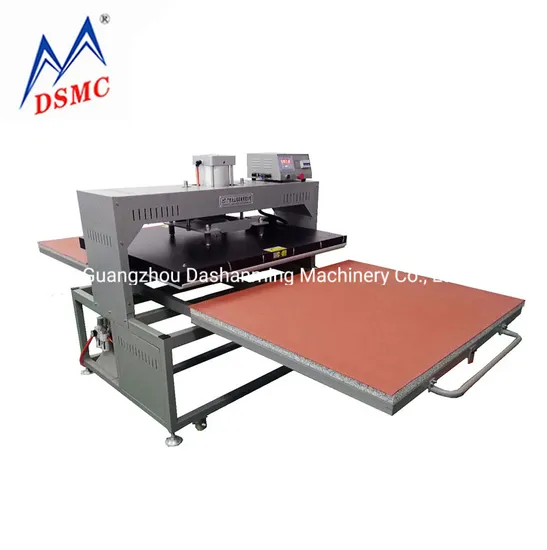

Large Format Sublimation Machine 100*120 Hydraulic Heat Press Machine for Textile Sportswear

Product Description

Large Format Sublimation printing machine 100x120 Hydraulic Heat Press machine for Textile Sportswear Product Description Guangzhou Dashan Ming Machinery Co., Ltd (Dashan Machinery) is established for many years, set R & D, production, sales and service in one of the industrial enterprises, the company mainly develops hot drilling machine, hot painting machine, laser machine, brush drilling machine and other equipment.

The gantry type double side duplex pneumatic/ hydraulic heat press machine is mostly applied to processing the product which requires short pressing time, high production volume and big product area. The max size of the product reaches 2500*3500mm as the ultra big pressing equipment. Can also be made of other non-standard size.Common products: product with big area such as Muslim scarf hot fix rhinestone pyrograph, aluminum ceiling, stainless steel door, marble pyrograph and so on.
Product Parameters

Model	DS-2B680	DS-2B810	DS-2H1012	DS-2H1215
Voltage	220V/380V	220V/380V	220V/380V	220V/380V
Power	6KW	9KW	13.5KW	16.5KW
Work size (cm)	60 x 80	80 x 100	100 x 120	120 x 150
Pressure	240-1000KG	400-1600KG	500-3000KG	800-4600KG
Temp	0~240ºC(max)	0~241ºC(max)	0~242ºC(max)	0~243ºC(max)
Weight	250KG	330KG	420KG	500KG
Packing size (cm)	80 x 110 x 130	90 x 130 x 130	110 x 150 x 140	140 x 180 x 140

Detailed Photos
Company Profile
Guangzhou Dashanming Machinery Co., Ltd, an industrial enterprise integrating R&D, production, sales and service, specializing in the manufacturing ultrasonic hot drilling machine, automatic hot fix machine, ultrasonic welding machine( fixed position machine),heat press machine(pneumatic, hydraulic, manual), steam press machine, laser cutting machine(carving machine), robot automatic production line, other equipment and related accessories. Further more, we can develop all kinds of non-standard production equipment according to the drawing and requirements from clients.
