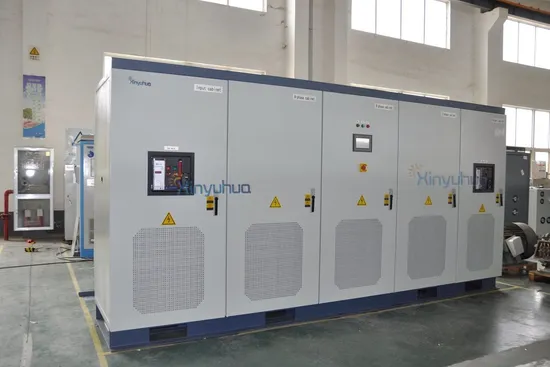

10kVA 30kVA 50kVA 100kVA 300kVA 500kVA 800kVA 1000kVA 1250kVA 1600kVA Static Frequency Converter 50Hz to 60Hz

Product Description

Typical applications 50 to 60Hz or 60 to 50Hz industrial applications Dockside converter allows generators to be turned off while at port to save fuel and eliminate pollution Replacement of motor generator sets As a clean power supply to isolate an unstable grid from a critical load
Technical parameters:

Model

13060

13100

33150

33300

331000

332000

334500

336000

338000

3316000

Capacity(KVA)

6

10

15

30

100

200

450

600

800

1600

Circuit model

IGBT/SPWM pulse width adjustment mode

Output

50Hz/60Hz 45-65Hz

Load stability

≤±1%

frequency stability

fixed-frequency≤±0.01%,frequency modulation≤±0.1%

Input voltage

220V±10%

380V±10%

Phase

single phase

three phase four wire

Wave distortion

≤3%

Output voltage

1 - 500 V continuous-tuning

Reaction time

≤2mS

DPI ( dots per inch )

frequency meter

0.1Hz

Voltage meter

0.1V

Current meter

0. 1A

Power meter

0.1W

Ammeter display

Frequency, voltage, current, power or PF 4 number display

Protection function

over voltage, over current, over temperature, over load, short circuit, and automatic alarm

Insulation reactance

500Vdc 20MΩ

Pressure endurance insulation

1500Vac/5mA/1min

Cooling model

Compulsive fan cooling

Working temperature

-10ºC-45ºC

Relative humidity

0-90%(No condensing)

Altitude

1500meters

Dimension (W×L×H)mm

660*400*700

450*900*900

500*1100*1100

1320*600*1490

850*1450*1880

1160*1910*1880

1260*2000*2080

830*3262*2260

model		333000	3350000	33100000
Capacity(KVA)		3000	5000	10000
Input	Voltage	400V±15% 3phase 4wires or 3phase 5wires
	Frequency	45-65Hz
	Power Factor	≥0.90
Output	Voltage	3phase 3 wires ,voltage(300-500V/690)can be chosen
	Frequency	50Hz/60Hz can be chosen
	Frequency Stability	≤0.01%(0-100% when load are changing,output frequency are not changing )
	Load Stability	≤3%(100% pure resistance load)
	Overload Ability	110% 1hour ,150% 10minutes
	Wave Distortion	Pure sine wave,THD≤3%
Efficiency		≥90%(100% loads)
Display		Input/output voltage/ frequency,3phase phase voltage/current,active power .working time.history error etc.
Control mode		IGBT/SPWM Pulse width adjustment mode
Protection Class		IP54
Insulation Reactance		>2MΩ
Pressure endurance Insulation		1800Vac/5Ma/1minute
Noise Level		50dBA @1meter
Cooling Model		Converter:heat pipe cooling transformer:Compulsive fan cooling
Protection Function		The output power supply have perfect protection function of over voltage, over current, short circuit, converter overheat . Consider the different control of the ship's electricity load, when the output load capacity reach the set value,will alarm, so as to control the electricity load
Environment		-10ºC~+50ºC and 0~90%

Why Choose US?
• Professional team for after-sale service 7*24
• Experienced R & D team and profesional sales team
• OEM & ODM service, we will evaluate, design and produce your customized products
• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
Trade Term:
• Payment term:Western Union, T/T
• Leading time:10-30 working days
• Freight cost: Customers's shipping agent or our forwarder
FAQ:
1 Q:Are you manufacturer?
We are a professional power supply manufacturer with high reputation in this field.
2.Q.Do you have certificates for your products?
Yes,we have CE, standard certifications.
3. Q:Can we print our logo?
We can print your logo on both power adapter and package.
4. Q: How is your production management and quality control system?
All our product process follows up ISO9001. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
Warranty:
As our customer, you enjoy the following services:
(1)One year repair for free of the complete machine;
(2)technical Support
(3) Within 24 hours for respond after receiving notification;
(4) Cost maintenance forever.

---
