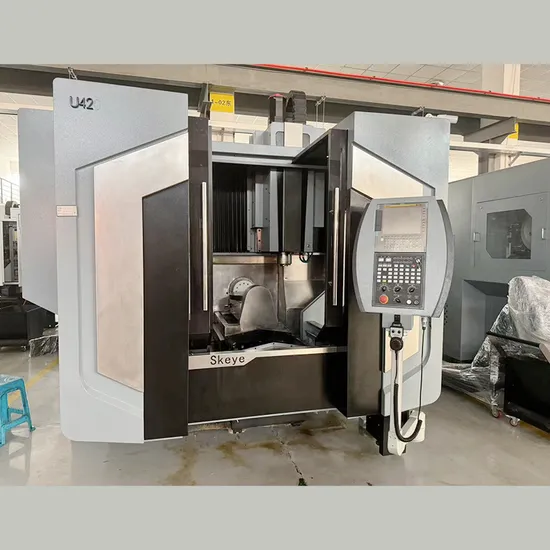

Robust 5 Axis CNC Milling Machine with 24 Tool Capacity for Efficiency

Product Description

Product Description
Product Parameters

Item	Unit	U650
Travels
X-axis	mm	800
Y-axis	mm	520
Z-axis	mm	500
B rotation range of tilt axis	°	±120
Rotation range of axis C	°	360
B/C axis positioning (VDI3441)	"	10
B/C axis repeatability (VDI3441)	"	4
Distance from spindle center to column guide surface	mm	187
Distance from spindle end to worktable	mm	150-650
Worktable
Worktable area	mm	Φ650
Reference aperture	mm	Φ50H8
T-slots width	mm	14H8
Maximum machining workpiece volume	mm	Φ650*(100+R325)L
Max. weight on table (45-90°/horizontal)	Kg	300
Spindle
Spindle speed	rpm
Taper of spindle nose		BT40
ATC Auto Tool Magazine
Tool taper		BT40
Magazine type		Mechanical cutter arm type
Tools Capacity	Pcs	24T
Maximum tool diameter (no adjacent tool)	mm	75/150
Maximum tool length	mm	300
Maximum tool weight	kg	7
VDI3441 (JISB6338)
Positioning	mm	P0.008(±0.003/300)
Repeatability	mm	Ps0.006(±0.002)
Basic parameters
Spindle motor	kw	7.5/11
X/Y/Z axis motor	kw	4.0/4.0/7.0
B/C axis motor	kw	12.6/6.3
X/Y/Z axis rapid speed	m/min	24/24/24
B/C axis rapid speed	rpm	60/100
Feed rate	mm/min	1-12000
Controller	FANUC	0i-MF
Power requersted	KVA	45
Air consumption	Kg/cm²	6
Machine weight	Kg	10000
Water tank capacity	L	350L
Dimension(L/W/h)	mm	3700*3510*3260

Standard proximity and function			Optional proximity and function
1.FANUC Oi-MF Plus control system		13.Transformer	1. Optical ruler
(5 Axis 4+1 with TCP)		14.Water gun	2. Tool length measurement tm26D
2.BT40-150 inclined spindle on 15000rpm		15.Air gun	3.Workpiece measurement OMP60
3.Oil coolant system		16.Rigid tapping	4.Ball gauge for calibration
4. Spindle blushing		17.Manual loosening device	5. Workbench center correction software
5.Cutting coolant system			6. HSK-A63 spindle 15000rpm/20000rpm
6.Tank and waterbox			7.40 pcs magazine
7.Automatic lubrication system			8.Blowing cooling
8. Telescopic cover of triaxial rail			9. Coolant temperature controller
9.Electric box air conditioner			10.Oil mist collector interface (diameter 200mm)
10.Handwheel			11. Air dryer
11.Work light			12. Bonded anchor bolt
12.Warm light			13. Metal filter housing of air dryer

OUT LOOK SIZE
Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: We proudly offer a comprehensive 12-month warranty starting from the BL date. This ensures your peace of mind and confidence in choosing our products.
Q2: Can we visit your factory before order?
A2: Absolutely! We warmly invite both new and returning friends to explore our factory. We are delighted to assist with transportation, offering pickup from the station or airport. Additionally, we are pleased to help arrange your travel plans, including tickets and accommodation. Your visit will be an honor for us.
Q3: Do you have a stock?
A3: Generally, we craft our machines to order, ensuring they meet your specific needs. However, during trade fair months, you might find a few exquisite samples available.
Q4: What's the MOQ?
A4: Our minimum order quantity is just one set, allowing you flexibility and ease in procurement.
Q5: How about your quality?
A5: Our commitment to quality is unwavering. Kunshan Skeye Machinery Co., Ltd. is ISO9001:2008 certified for quality management. We also adhere to ISO14001 and OHSAS18001 standards for environmental and occupational health safety. Most of our products meet stringent European and American certifications such as CE, GS, EMS & UL. Proudly, 90% of our production serves over 60 countries and continues to garner a stellar reputation globally. Rest assured, our high-quality products and excellent service will exceed your expectations.
Q6: Do you have professional engineers?
A6: Indeed, we boast a team of expert engineers and designers dedicated to innovation. Our OEM services are tailored to your exact specifications.
Q7: Can you provide customized machines?
A7: Yes, we excel in customization, crafting machines to perfectly match your unique requirements and vision.

---
