Product Description
Product Description
Printed non woven PP roll to sheet cutting machine
Specification:
| Model | DP-800 sheet cutting machine |
| Max feeding width | 800mm |
| Voltage | 380V 50HZ |
| Power | 4HP |
| Sheeting Length | 0.1-9999.9mm |
| Sheeting width | 1-800mm |
| Sheeting precision | ±0.05mm |
| Unwinding shaft diameter | 3 inch or 6 inch |
| Unwinding diameter | max 600mm |
| The unwind air shaft can be made as take off | |
Functional Characteristics:
Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision.
Purpose:
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Electrical listing:
Touch Screen
| KUNLUN
| Beijing(Made in China)
|
Programmable Controller
| MITSUBISHI
| Made in Japan
|
Servo Driver
| Delta
| Made in Taiwan
|
Servo Motor
| Delta
| Made in Taiwan
|
Motor of cutting knife
| TPG
| Made in Taiwan
|
AC Contactor
| RENMIN
| (Shanghai)Made in China
|
Solid State Relay 20A
| Guguang
| (Shanghai) Made in China
|
Electric eye
| Panasonnic
| Made in Japan
|

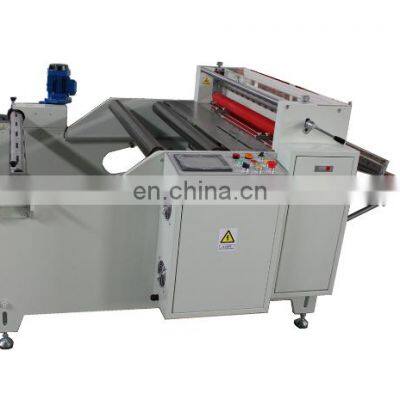

Machine picture:
>>
