Turret Head Milling Machine X6325D
|
US$5,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Transport Package
Veneer Case
Specification
CE Standard
Production Capacity
100 Units/Month
Product Description

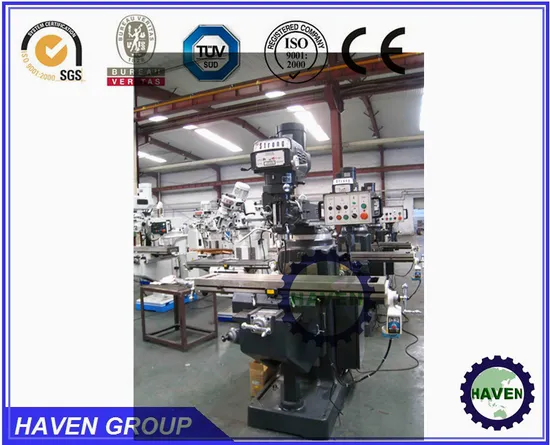

Turret Head Milling Machine X6325D
Main specification:
| MODEL | X6325 | X6325D |
| Working table | 254* 1370 mm | 254* 1370 mm |
| Longitudinal travel | 950 mm | 950 mm |
| Cross travel | 420 mm | 420 mm |
| Vertical travel | 420 mm | 420 mm |
| Spindle hole taper | NT40 ( ISO40 ) | NT40 ( ISO40 ) |
| Spindle travel | 127 mm | 127 mm |
| Power dial feed | 0.04, 0.08, 0.15 mm | 0.04, 0.08, 0.15 mm |
Spindle speed
| shift without grade | 60-4200 rpm | 60-3750 rpm |
| shift by grade | 65-4500 rpm, 16steps | 65-4500 rpm, 16 steps |
| Spindle motor | 3 HP | 5 HP |
>>
