Teu Diesel Forklift

Product Description

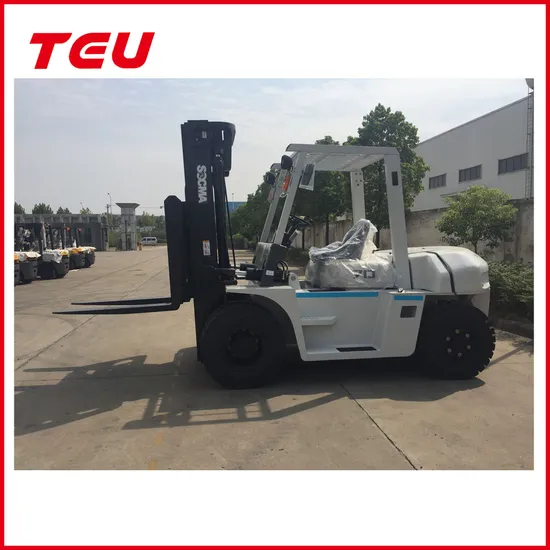

TEU Forklift Truck
Model: EFFO model
Description: 7TON diesel forklift FD70T TEU
Configuration for EFFO model TEU diesel forklift:
Engine options:
Japanese and or Chinese engine, we offer forklift with Japan origin C240, 4JG2, and S4S
Xinchai 490/498/ 4D27G31/4D30G31
Mast options:
Duplex mast: 3000mm duplex mast, 4000mm duplex mast,
Triplex: 4000mm triplex mast, 4500mm triplex mast, 4700mm triplex mast, 5000mm triplex mast, 6000mm triplex mast, 6500mm triplex mast.
Forks options: 1070mm fork, extending forks 1220mm, 1370mm, and forks sleeves Attachments: Cascade side shift, forks positioner, paper clamp, push and pull, single double pallet handler etc, contact with sales for more options
Lights: led lights,Indicators front and back, front lights
blue light and rear working light for option
Reverse beeper, back alarm
high mounted pre filter, high muffler, camera with view
Comfortable seat with belt, Grammar suspension seat, suspension seat with armrest,Grammar suspension seat with armrest, Grammar suspension seat with fingertips
Color options: Yellow, yellow + grey, White, white + grey
Container loading:
2 units 7TON forklifts can fit in a 40GP.
OEM BRANDS AVAILABLE.

FD70T Technology Specification
Features	1	Manufacturer			TEU
	2	Model			FD70T
	3	Load capacity		kg	7000
	4	Load center		mm	600
	5	Power unit			Diesel
	6	Operator type			Driver/seat
	7	Tire type			Pnenumatic
	8	Wheel	Front/rear		4/2
Dimension	9	Max. lifting height		mm	3000
	10	Free lift		mm	210
	11	Fork size	L*W*T	mm	1220*150*65
	12	Tilt range	Mast forward/backward	deg	6/12
	13	Overall length(without fork)		mm	3590
	14	Total width		mm	1995
	15	Mast height (fork lowering)		mm	2500
	16	Overall height fork raised	With backrest	mm	4420
	17	Height to head guard		mm	2450
	18	Turning raduis(outside)		mm	3360
	19	Front face of fork to front axle		mm	620
	20	Min. right angle stacking aisle	pallet size :1100×1100 add clearence	mm	5620
Performance	21	Speed	Max Travelling full/no load	km/h	26/30
	22		Lifting full/no load	mm/s	450/550
	23		Lowering full/no load	mm/s	450/500
	24	Max.drawbar pull	full/no load	kg	5400/2200
	25	Gradeability at 1.6km/h	full load	%	29
		Max. Gradeability	full/no load	%	33/19
Weight	26	Truck weight		kg	9450
	27	Weight distribution	Full load front/rear	kg	14520/1930
	28		No load front/rear	kg	3760/5690
Frame	29	Tires	Number	front/rear	4/2
	30		Model	front axle	8.25x15-14PR
	31			rear axle	8.25x15-14PR
	32	Wheelbase		mm	2250
	33	Tread	Front/rear	mm	1470/1700
	34	Ground clearence	At lowest point(mast)	mm	190
			Frame	mm	230
	35	Brake	Service brake		power brake
			Parking brake		Mechanical-hand lever
Engine	36	Battery	Voltage/capacity	V/AH	2x12V-80AH
	37	Engine	Model		ISUZU 6BG1
			Rated power	kw/rpm	82.3/2000
			Rated torque	N-m/rpm	418/1500
			Number of cylinders		6
			Displacement	L	6.494
			Fuel tank capacity	L	140
	38	Transmission	shift stage(front/rear-type)		2-2 automatic
	39	Operating pressure	Hydraulic system pressure	kg/cm²	200

Warranty time:
All forklifts we offer one year or 2000 working hours (subject to the first) warranty time.
TEU offer professional QC to control the forklift quality before dispatch, and give fastest problem solution for after-sales service.

---
