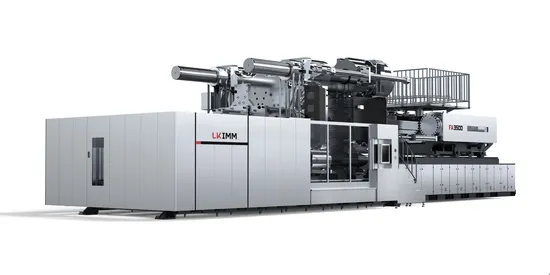

Lk Forza-III 1300 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have more than 10 production bases worldwide, most in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
This series of products with advanced technology, stable performance, and excellent quality, is widely used in household appliances, auto parts, logistics, packaging, high-speed train, pipe fittings, and other fields of plastic products production, especially suitable for deep cavity and low-pressure injection molding process products production. The clamping force of the Forza series with 450 to 7000 tons.
Forza 450 ton - 7000 ton
1.The compact two-plate closure unit makes it possible to install large plates.
2.The module for quick change of molds is plug and play.
3.Excellent dry cycle performance.
4.Servo drive system for large tonnage machines.
5.Linear guide rails for the clamping and injection motion support
6.Single Cylinder injection unit.
Use of application
Crate, Pallet, Garage bin, Pail, Automotive, Electrical Appliances, Car Body, Power train, Interior, Home appliances
Technical Parameter List

	ITEM	UNIT	FA1300
Shooting Part	Shot Weight(ps)	g	4725	6172	7811
	Screw Diameter	mm	105	120	135
	Injection Volume	cm^3	5193	6782	8584
	Injection Pressure	Mpa	195	149	118
	Screw L/D Ratio	L/D	25.1	22	19.6
	Injection Rate	cm^3/s	945	1234	1562
	Screw Speed	r/min	110
Clamping Part	Hopper Capacity	L	350
	Clamping Force	KN	13000
	Die Height(Min-Max)	mm	700-1350
	Max.Daylight	mm	3000
	Space Between Tie Bars	mm	1420*1420
	Ejector Stroke	mm	400
	Ejector Force	KN	500
Others	Pump Motor Power	KW	41.4*2+47.7
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	1700
	Heating Capacity	KW	80
