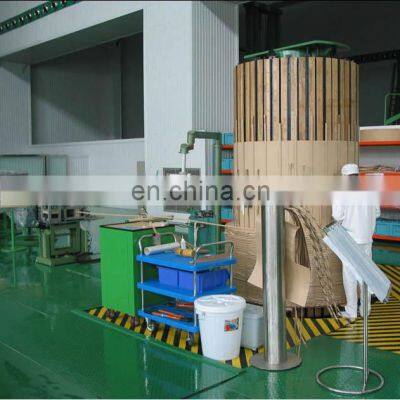

Hot sale vertical HV transformer copper wire electric coil winding machine

Product Description

Product Description
Product Description
Specification

Item	LRJ-10	LRJ-20	LRJ-25	LRJ-30
Max capacity/t	10	20	25	30
Chuck diameter/mm	φ1500	φ2900	φ2200	φ2800
Max turning diameter/mm	φ2200	φ3000	φ3400	φ3500
Chuck elevating stroke/mm	2200	3000	3000	3500
Max torque/Nm	9000	15000	16500	23000
Chuck rotating speed/ rpm	0-10	0-10	0-10	0-10
Chuck elevating speed/mpm	0.5	0.5	0.5	0.5
Covering plate stretching speed/mpm	2.5	2.5	2.5	2.5
Covering plate stretching range/mm	Φ680-φ2232	Φ1040-φ3040	Φ1800-φ3600	Φ1800-φ3600
Dimension/mm	5086x4586x4263	6500x6000x5020	6856x6356x5020	6856x6356x5020

Function Description
1. This winding machine is suitable for Iron Core and adjustable winding core
2. Faceplate can move up and down upon winding coil height, lifting system has buffer coupling, lifting is soft start.
3. Use 10 "color touch screen panel, PLC programmable control; faceplate rotation speed can be controlled by the system. Foot switch is used to control forward and reverse and emergency stop. The connection cables are metal shielded multi-core cable. All electric elements use international famous brand products.4. Counting device can preset, positive and negative count, and has the function of with Power off memory and Automatic stop.
5. The pit covering plate can electric move according to coil winding diameter to ensure safety and reliable operation.
6. Wires in tensioning device are in the position of 850mm from the ground. The whole device can horizontally rotate ±30 degree.
7. Pit is internally provided with lighting facilities for convenient maintenance.

---
