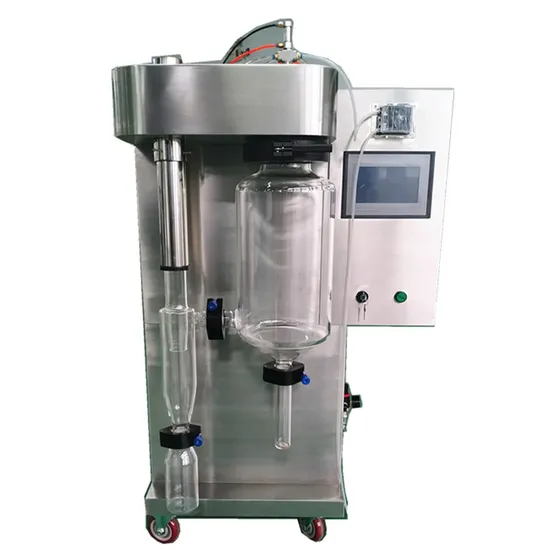

Lab Mini Spray Dryer Machine with High Quality

Product Description

Product Description The lab spray dryer,small size mini laboratory spray dryer machine is mainly used for powder prodcution in lab.The dryer was developed by lengthening the drying chamber, the cycloen separator is disassemble, the new design makes it no powder residue at the corner area. It is widely used in college,research institute and food or medicine field.The dryer suits all kind of solutions like emulsion and suspension.It also suits to thermal sensitive materials such as biologicals,biopesticide and
enzymes.Activity of the material won't get affected when drying.
Specifications:
Interface: 7" LCD English touch screen, all parameters can be set on the sreen.
Temperature:PID control,±1ºC
Real-time temperature accuracy:0.1ºC
Inlet air temperature: 30 ºC ~300ºC
Outlet air temperature: 30 ºC ~140ºC
Evaporation: 0~2000ml/h
Particle size: 5-110 μm
Feeding mode: peristaltic pump adjusting
Feed rate: 50~2200ml/h(adjustable)
Dry air volume: 0-330m3/h
Max. air pressure: 686Pa
Temperature precision:
Average drying time: 0.8~1S
Power:8.8KW/220V,single phase,50HZ
Blower:0.75kw
Air volume:105m3/h
Compressor: oil-free,8L, 0.55kw
Size: (L*H*W): 1380mm*770mm*590mm
Air compressor: inbuilt
Dryer body: SUS304
Nozzle size 0.5,0.75, 1.0mm
Product Parameters Features:
1. High-tech nozzle, high efficiency
2. LCD touch-screen display: inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.
3. Nozzle cleaner (needle) is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be
adjusted.
4. Shutdown protection function: the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won't
be damaged in this way.
5. Material won't get polluted due to the special material of the atomizing drying and collection system.
6. Two-fluid nozzle, stainless steel, compact structure, no accessory device.
7. PID constant temperature control,precise temperature control,precision is±1ºC.
8. Feed rate can be adjusted by the peristaltic pump, Min. samples can reach 30ml.
9. Uniform product powder, above 95% powder keep within same size range.

---
