New Scissor Lift Equipment 14m Xg1412HD Hydraulic Electric Lifting Table Selling

Product Description

Product Description

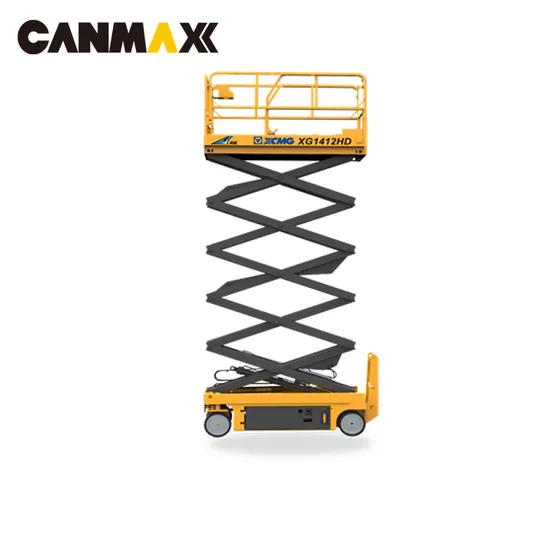

New XG1412HD scissor lifting table elevated work platform developed by X C M G has the work height at 16m, the vehicle width at 1.47m, the rated load at 320kg, max. platform length at 3.2m and max. gradeability at 25%.
This kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.features compact structure, advanced performance, completed safety devices.
3.Meeting the customer needing for safety, reliability and intelligence.
4."Zero Turning Radius "is unique and enable machine to corner in narrow room.
5.Max. payload at 320kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.

Detailed Photos
Product Parameters

Item		Unit	Parameter	Allowable tolerance
Dimension of machine	Length (without ladder)	mm	2480 (2270)	±1%
	Width	mm	1190
	Height(platform folded)	mm	2600 (2060)
Wheelbase		mm	1875	±1%
Wheel track		mm	1063	±1%
Min. ground clearance (Pit protector ascending/descending)		mm	100/20	±5%
Dimension of working platform	Length	mm	2275	±1%
	Width	mm	1120
	Height	mm	1265
	Extension length of the auxiliary platform	mm	900
Centroid position of machine	Horizontal distance to front shaft	mm	950	±1%
	Height of centroid	mm	680
Total mass of machine		kg	3100	±3%
Max. height of platform		m	11.8	±1%
Min. height of platform		m	1.47	±1%
Max. working height		m	13.8	±1%
Min. turning radius (inner wheel/outer wheel)		m	0/2.3	±1%
Rated load		kg	320	-
Payload of extended platform		kg	115	-
Lifting time		s	45-70	-
Lowering time		s	52-78	-
Drive speed(lowered)		km/h	≥3.9	-
Drive speed(elevated)		km/h	≥0.8	-
Max. gradeability		%	25	-
Tilt warning angle (side/forward and backward)		°	1.5/3
Lifting / traveling motor	Model	-	-	-
	Rated power	kW	3.3	-
	Manufacturer	-	-	-
Battery	Model	-	T1275/6-EV-100	-
	Voltage	v	24	-
	Capacity	Ah	300	-
	Manufacturer	-	Leoch /Optional Trojan	-
Tire models		-	Traceless and solid /381×127	-

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.

---
