KC522E Fully Automatic Cone Winding Sewing Thread Winder Machine

Product Description

Product Description

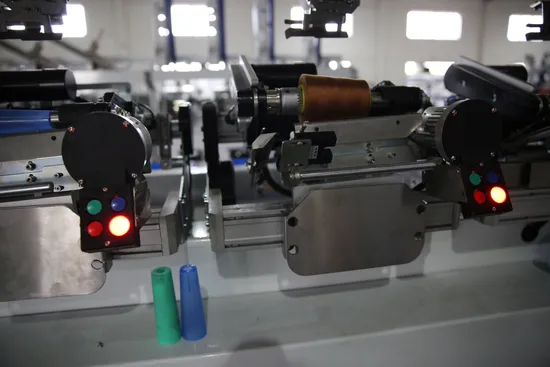

KC522E Fully Automatic Thread Winding machine
Auto-doff High Speed Precision Winder
Mainly suitable for winding of spun sewing thread,embroidery thread, fishing net thread etc.
Used for A-tube, Y-tube (King-tube), cylinder tube production, be suitable for the production which need exchange a variety specifications.
Features
Intelligent and constant temperature oil feeding device which can stop automatically when out-of oil or oil shortage.
It can also follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.

Functions of KC522 auto winder:
---Auto doffing,
---Auto cutting end of yarn and inserted to cone fully automatically
---Intelligent oil device, which works the same function as Graf oil device as below:
1) It works to adjust temperature for oil, with oil box installed;
2) It works to control oil flowing speed with sensor installed;
3) When oil used up, it will stop single spindle and give alarming;
4) It has sponge inside covering the yarn, yarn going through the sponge will add oil more evenly,
and also sponge will avoid oil flying out when machine running high speed ,to save oil for customers.
Product Parameters

Take-up tubes	A tubes: cones (cones with conicity from 3° 30 to 5° 57' ; cylindrical or cone king spool up to 2°; tip diameter≥18mm)
Take-up package diameter	Up to 105mm
Supply package diameter	Up to 320mm
Rated power	300W/spindle
Compression air	6 Pa

KC522E: Eletronic yarn guide for A tube;
Spindle gauge: 460mm;
Type of winding: precision cross winding;
Linear speed: up to 1100m/min ( depend on the process parameters );
Yarn count: up to 3300 denier;
Supply package diameter: up to 320mm;
Electronic guide yarn winding production, it can be adjusted at winding length, taper angles in the required range.
It is designed as the same winding technology as European Brands but was developed and programmed by ourselves. The functions of our machines are identical with European Brands and our technology ensures well controlled winding. And some of our spare parts is compatible to European Brands, such as guiding motor, sensor and angle transducer.
After Sales Service
For demo machine set:
4 spindles/set+Machine head
+Stainless refueling tank/Plastic refueling drum
+Intelligent refueling box;
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.

---
