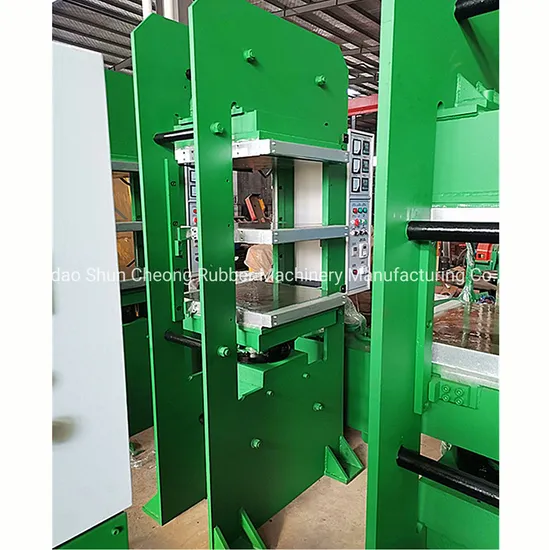

Vulcanizing Rubber Sole Press Machine

Product Description

Vulcanizing Press, Hydraulic Rubber Vulcanizing Press, Hot Vulcanizing Press, Plate Vulcanizing Press, Hydraulic Press XLB-Q900x900x2
Specification:
We have a set of standardized production line, which contains wire peeling machine, rubber cutter, Grinding mill, shredder, screen conveyor, rubber crusher, shaker, banburying mixer, open mill, spiral elevator, Kneader, rubber filter and extruder, vulcanizer, refiner, calendering machine. We can according to all your requirements for your design is most suitable for your machine !
1. This Rubber Vulcanizing Press is used to manufacture the special seal rings in petroleum mechanical.
2. PLC control Method.
3. Customers can choose according to their needs.
4. The new design concept, strong technical force and advanced manufacturing processes of the company ensure that each rubber vulcanizing press can be manufactured to meet customer's individual requests.
Main Usage:
This Rubber Vulcanizing Press is used for all kinds of vulcanizing mould, rubber and plastic.
This Rubber Vulcanizing Press can be using in petroleum industry to produce sealing parts.

Main Features:
1 The Rubber Vulcanizing Press is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
2 Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
3 Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
4 The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
If you are interested in our products or have any questions please contact us freely. We will try our best to meet your requirement at first time.

Item	XLB240×240×1/4	XLB400×400×1/4	XLB500×500×1/4	XLB600×600×1/4	XLB-Q900×900×1/4	XLB-D1100×1100×1/2	XLB-DQ1200 ×1200×1/2
Total pressure(MN)	0.15	0.5	0.63	1.00	2.00	1.20	3.15
Daylight (mm)	125	125	125125	125	300	150	200
Platen Layers	1-4	1-4	1-4	1-4	1-4	1-2	1-2
Unit area pressure of hot plate(Mpa)	2.60	3.13	2.52	2.77	2.47	1	2.19
Piston stroke (mm)	250	250	250	250/400	400	300	400
Heating mode	Electricity	Electricity/Stream	Electricity/Stream	Electricity/Stream	Stream	Electricity	22
Main motor power(KW)	2.2	2.2	2.2	2.2	5.5	3	3
Size: L×W×H(mm)	1200×350×1300	1600×500×1480	1750×600×1540	1880×720×1680	1400×900×2400 (Mainframe)	1150x3500x1650	1685×1320×2450
Frame form	Post	Post	Post	Post	Frame	Post	Frame

Company Profile Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District,Qingdao City.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.

Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.

The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.

Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.

Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:

1. Every parts pass strict quality inspection before storage.

2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.

3. The whole body of all products are with free technical support.

4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.

5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.
Certifications

Our Service

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong Airport. We will pick up you at the airport.
