Superfine Pulverizer Fine Pulverizer Wood Pulverizer

Product Description

Machine description:
GYJL-22FSJ-Ultrafine pulverizer is composed of three parts: main machine, auxiliary machine and electric control box. It has various performances such as air selection, no sieve, no net, uniform particle size, etc. The production process is continuous. The machine does not heat up during the crushing operation, and can crush various heat-sensitive materials. Its comprehensive performance has reached the international advanced level, the machine is widely used in pharmaceutical, chemical, food (eg: traditional Chinese medicine, food, chemical industry, health care, roots, stems, corn, rice, soybeans, garlic, star anise, cinnamon, dehydrated vegetables , hawthorn, dried ginger, garlic slices, sugar, saccharin, grains, dried shrimps, pumpkin powder, seasonings) and other industrial materials crushing.
Structure and working principle:

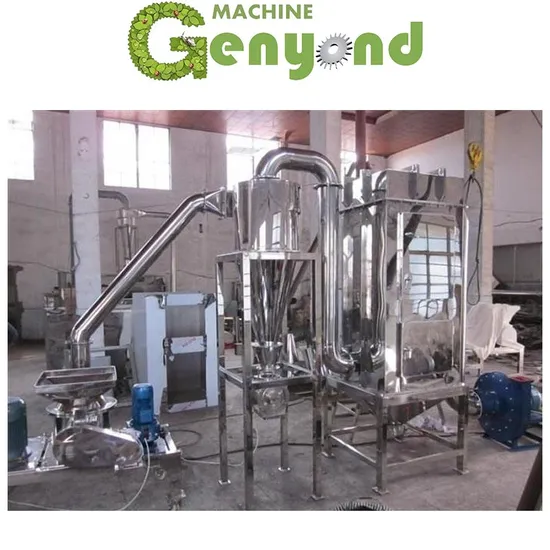

GYJL-22FSJ ultrafine pulverizer is a vertical shaft reflection type pulverizer, which can complete two processing steps of pulverization and fine powder sorting at the same time. It consists of a body, a frame, a feeding device, a crushing device, a discharge pipe, a transmission device and a motor. A complete set of ultra-fine grinding units. The granularity can be adjusted arbitrarily without downtime. The particle size of the product is uniform, the fineness can reach 80-320 mesh, and the machine has the function of self-cooling.
Machine Features:
1. Large production capacity: WFM horizontal impact pulverizer is a horizontal superfine pulverizer. The special material flow field design enables the material to complete the pulverization and classification process in a very short time, and the single machine has a large production capacity per hour> 10 tons.
2. Ultra-fine product: the high-speed rotating grinding disc, combined with the precise horizontal grading rotor, makes the material pulverized many times in a short distance, and the amount of fine powder produced is large, and the fineness can reach D97=3um.
3. Low energy consumption and wide application range: Reasonable number of crushing pieces, reasonable structural design, and matching devices make the mill low in energy consumption and wide in application in domestic mechanical crushing.
4. Low iron impurity content: The mill crushed parts, crushed lining plates, and special non-ferrous parts are used to minimize the iron content in the crushing process. It is the model with low iron content in the current international mechanical crusher.
5. This type of superfine pulverizer is designed in an integrated manner with the grading equipment, which has the advantages of large crushing ratio, simple structure, convenient operation, less supporting equipment, compact installation and small footprint.
Specification parameters:

Model(GYJL-22FSJ)	Capacity	Feed particle size	Discharge particle size	Total power	Spindle speed	Dimensions	Weight
FSJ 15	50-200kg/h	<10mm	80-320mesh	13kw	5800R/min	4200*1250*2700mm	0.95T
FSJ 20	80-300kg/h	<10mm	80-320mesh	22kw	4200R/min	4700*1250*2900mm	1.25T
FSJ 30	100-800kg/h	<15mm	80-320mesh	45kw	3800R/min	6640*1300*3960mm	2T
FSJ 60	200-1000kg/h	<15mm	80-320mesh	85kw	3200R/min	7500*2300*4530mm	4.2T
FSJ 80	500-1500kg/h	<15mm	80-320mesh	100kw	2800R/min	8200*2500*4600mm	5.6T
FSJ 100	200-2000kg/h	<20mm	80-320mesh	180kw	2000R/min	11000*2300*5100mm	7.5T

---
