iPhone / Micro/ Type-C port dock flex test board, phone battery power charging dock flex test repair tools for Micro Android Type-C Phone testing tool, U2 IC testing / battery testing / USB charging port testing for iPhone and Android phones, Micro dock flex test board for U2 IC / battery bad or good / USD charging port diagnostic tool.

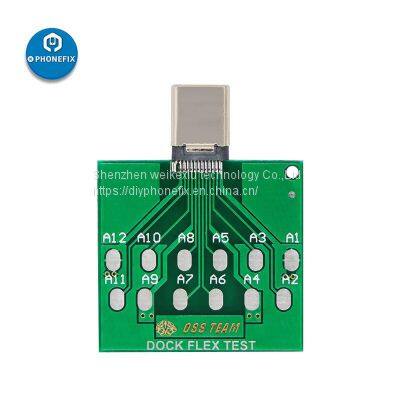

Micro Dock Flex Test Board for iPhone Android Type-C Phone Battery Testing Tool
Optional Types :
Option 1: Micro Port Test Board
Option 2: iPhone Port Test Board
Option 3: Type-C Port Test Board
Product Function :
It is used for testing the mobile phone U2 IC, battery and charging port good / bad performance.
Without cell phone parts removal necessary, you can plug the test board to tail plug directly
Face down the test board into the cell phone tail plug
It's designed for both iPhone and Android models.
Application: U2 IC Test & Battery Test & Charging Port Test
Used for testing the mobile phone U2 IC, battery and charging port good / bad performance
Pin Definition :
- identification / control
- channel 1 negative
- channel 1 positive
- power / battery
- identification / control 0
- channel 0 negative
- channel 0 positive
- grounding
Test U2 / battery: diode file, exchange red and black multimeter probe to measure value
Test charging port: diode file, exchange red and black multimeter probe to measure value
Supplementary explanation: Because the pin probe dislocation are too much, if necessary, please apply normal-working mobile phone measuring and recording, which will be convenient to compare with faulty phone and easier to judge the error.
Package List :
1pcs x Flex Test Board
>>
