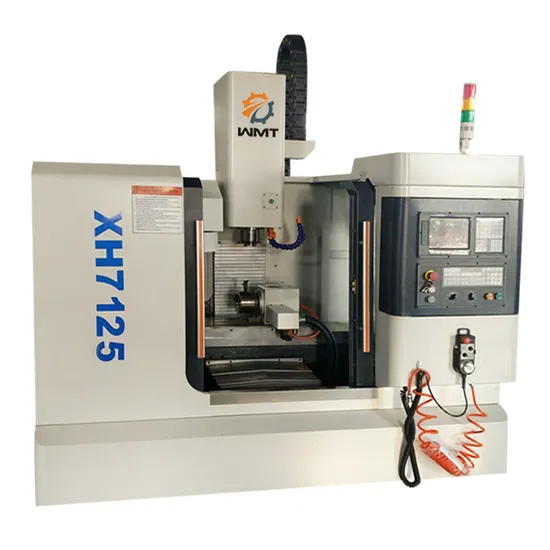

China 3 Axis CNC Milling Machine XH7125 for Metal Working

Product Description

Features:
CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
Main Technical Data:

Specification	XH7125
Main motor power	2.2kw
Highest spindle speed	6000rpm
X/Y/Z to the motor torque	6/6/7.7N.M
The spindle taper hole	BT30(optional:ISO40)
Table size	900x250mm
X/Y/Z axis travel	450x260x380mm
Distance between spindle center and surface column	330mm
The distance of spindle end face to the workbench	50-430mm
Rapid movement(X/Y/Z)	6/5/4m/min
T-slot	3/14/35
Table load	250kgs
Positioning accuracy	0.02mm
Repeat posotioning accuracy	0.01mm
Machine tool appearance size(L x W x H)	1200x1500x2100mm
Net.Weight	1300kgs

Standard Accessories:

servo motor, casting iron machine stand, 10pcs tool magazine spindle speed:8000rpm, servo spindle, pneumatic tool chaing, auto lubrication system, coolant system, complete cover type

Guarantee Terms:Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

---
