Pipe End Grooving Equipment

Product Description

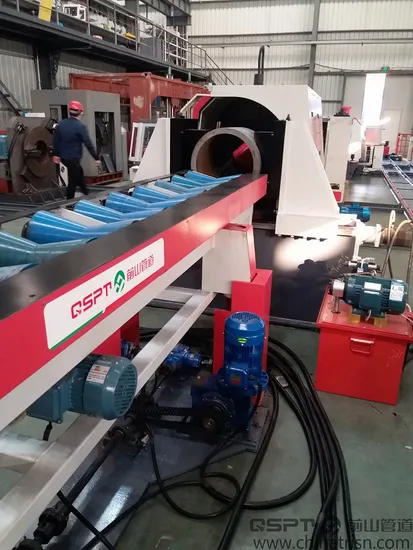

Fixed-Type High Speed Numerical Control Pipe End Beveling Machine
CNC PIPE END BEVELING MACHINE, CNC TUBE BEVELLING MACHINE
Performance features
On-line performance: Good(designed as per the on-line equipment of the production line)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Bevel cutting: Cutting a pipe with other equipment such as band saw and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of pipes with heavy wall thickness
Technical parameters
Pipe diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/ dn200-800(Φ 219-813);
Pipe wall thickness applicable: 4-90mm; 6-180mm
Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
Bevel shape: U, x, v and double v
Cutting direction: Radial automatic differential cutting feed or axial semi-automatic motor cutting feed(inlet frequency); Radial nc motor cutting feed or axial nc motor cutting feed
Retracting direction: Radial automatic motor retracting or axial automatic motor retracting(inlet frequency); Radial nc motor retracting or axial nc motor retracting
Driven by: Motor
Clamping system: Work piece is clamped by hydraulic cylinder & centering automatically
Bracket system: Screw lifting adjustable
Rev of the principal axis: Stepless speed control & variable frequency
Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0° ~45°
Widthwise displacement: ± 50mm; ± 100mm
Control system: PLC controlling; CNC controlling
Automatic aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameter
Conveying system: End beveling vf conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.

Pipe Dia applicable:	DN50-400 (φ60-426mm)	DN100-600(φ114-610 )	DN200-800 (φ219-813 mm)
Pipe wall thickness applicable:	4-90mm	6-180mm	6-180mm
Beveling speed:	≤ 5min /pipe bevel (dn200 sch40)	≤ 5min /pipe bevel (dn200 sch40)	≤ 5min /pipe bevel (dn200 sch40)
Bevel angle of tool rest:	0° ~45°	0° ~45°	0° ~45

our company is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments.

---
