Product Description
Product Description

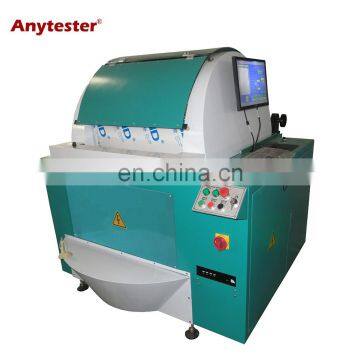

Product DescriptionProduct Application.AT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.SpecificationsWarping width0~500mmWarping speed0~500m/minWarping length2.4m or 3mApplicable yarn density5~500texNumber of bobbins1pcs (manually changeable)Yarn arrangementServo motor control with accuracy of 0.01mm reachableApplicable warp beam diameter¢60mmApplicable warp beam length300~500mmAir pressure required0.4~0.8MpaAir consumptionMax. 200L/hPower supplyAC380V 50Hz, three-phaseDimensions1700×1000×1300mm(L×W×H)Details & Features★ PC control and software for arranging the laying of yarn; ★ Special design for sample weaving in lab or research and development institute; ★ Foot pedal for unwinding; ★ With inching button and emergency stop for the safety of operator; ★ Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;CertificationsPacking & DeliveryPackagingSize140(L) * 100(W) * 180 (D)Weight600 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
