US$666,000.00-1,589,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Bed Dimension
4000/10000mm
Tt-Groove Size Size
28/250/40mm
X/Y/Zcutting Speed
6m/Min
Fast Moving Speed
10m/Min
X/Y/Zspindle Torque
48/40/30n.M
Sliding Pillow Section
500/500mm
Tabernacle Capacity
40/60t
Packaging & Delivery
Package Size
1.00cm * 2.00cm * 3.00cm
Package Gross Weight
15000.000kg

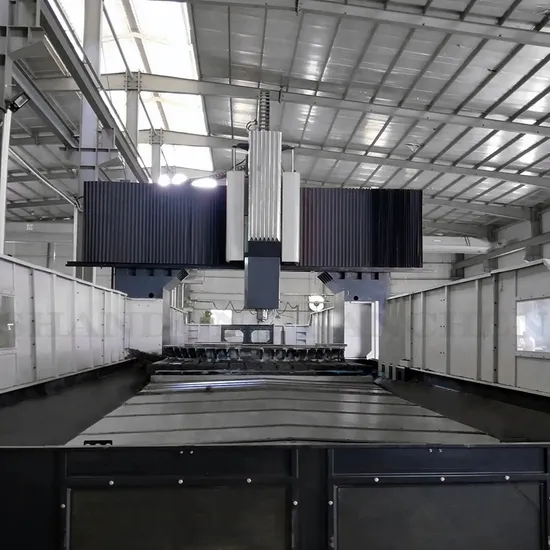

Product Description
| Range of work | Unit | ModelGMB40100 |
| Processing trip |
| xAxis itinerary | Mm | 11000 |
| yAxis itinerary | Mm | 4500 |
| zAxis itinerary | Mm | 1500 |
| Gantry width | Mm | 4100 |
| Distance from the work table to the spindle end surface | Mm | 150-1650 |
| Staging |
| Bed dimension | Mm | 4000×10000 |
| Workbench bearing | T/m² | 15 |
| TT-groove size size | | 28×250×40 |
| Feed Speed |
| x/y/zCutting speed | M/min | 6/6/6 |
| Fast moving speed | M/min | 10/10/10 |
| Principal axi |
| Main shaft speed | Rpm | 6000 |
| (/30)Spindle power (continuous / 30 min) | kw | 37/51 |
| x/y/zSpindle torque | N.m | 48/40/30 |
| Spindle taper hole | | BT50 |
| Sliding pillow section | mm | 500×500 |
| ()Knife Library (Options) |
| Vertical knife library capacity | T | 40 |
| Tool Diameter (full knife / empty) | mm | ∅110/∅220 |
| Tabernacle capacity | T | 40/60 |
| Tool Diameter (full knife / empty) | Mm | ∅125/∅250 |
| Tool length | Mm | 400 |
| Knife weight | Kg | 25 |
| Precision(operative norm GB/T19362.1-2003) |
| Positioning accuracy | Mm | 0.055With a grating ruler/0.028With a grating ruler/0.02(0.018)With a grating ruler |
| Repeat positioning accuracy | Mm | 0.035With a grating ruler/0.018With a grating ruler/0.013(0.01With a grating ruler) |
| |
| Total power capacity | KVA | 150 |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
