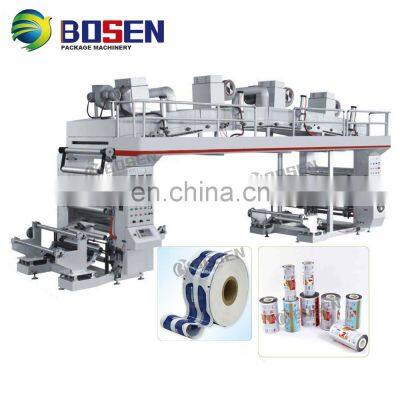

Product Description
Product Description
Product Description
Product Application1. Winder unit
Max. width of laminating material: 200mm- 33200mm
Laminating layers:2 layers
Max. Mechanical speed: 130m/min.
Max. Laminating speed: 120m/min
Max diameter of unwind: 600mm.
Max diameter of rewind: 800mm
Suitable material:BOPP 18-100μm CPP 20-100μm PET 12-100μm PE 35-100μm NYLON 15-100μm
Alu foil Metalized film Paper 18-60μm
2. Unwinder unit
Outside dual station unwinding turret, 360°inching positive and negative rotation. Each unwinding has two EPC.
Adopt with magnetic powder brake
Auto tension control
Air shaft
Auto splicing and cutting
3. Gluing part
Independent motor drive, frequency inverter controlling
Gluing with anilox roller(Diameter:160mm).
Anilox roller is shaftless installation which is convenient.
Pneumatic pressing rollers.
Pneumatic heave doctor blade, adjusted in 3 direction, controlled by dual cylinder, transmitted by independent synchronous motor.
4. Drying part
Electric heating.
Waste air exhausting tunnel.
3 pace intelligent temperature control, 3 pace independent constant hot air drying and recycled system, air circulation system.
Material length in the oven: 8000mm /9000mm/10000mm according to the machine size.
Pneumatic oven open and close
EPC at the oven exit ensures the material not moving left and right during speeding after heating.
5. Laminating part:
Independent motor drive, frequency inverter controlling.
The laminating rollers are heated by heat-guiding oil, making the heating even and constant.
Water cooling roller make the laminating more firm.
Floating roller adjust the tension.
6. Rewind part:
Outside dual station unwinding turret, 360°inching positive and negative rotation.
Rewinding is transmitted by two torque motor, it can buffer the film impacting, reduce waste, save time, improving efficiency during roll change under high speed
The horizontal adjustment of the material rolls are manual.
Automatic cutting and splicing device.
7. Frame
The wall board is made of high strength low stress combined alloy cast iron.
The main transmission adopts AC frequency control, gluing roller and hot drum adopts floating roller to control the tightness or looseness of the film.
Frequency motor power: Gluing inverter, lamination inverter.
Main Features
1) Reasonable structure, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure dry channle opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Effective dry system and stable machine system.
Detailed Images
Automatic Pneumatic Dry System
Very dry zone has seperated pneumatic system control.
Each dry zone could be open and close
Wider Large Type
Width 600mm to 3200mm
Competitive price
High speed 150m/min
Winder and Rewinder
First winder is web guide correction system
Second winders has two station
Inveter is LG LS DELTA PASONIC YASKAWA...best quality
Motor is Siemens or high quality China brand
Test Running Machine more then 2 hours in our factory
Confirm very parts go right
Test material and take video for our cutomer
Certifications
Packing & Delivery
Packaging
|
Size
| according to your lamation width
|
Weight
| see specification
|
Packaging Details
| The normal package in containder with film. or pack it according to customers special request.
|
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
