100L Vacuum Homogenizing Emulsifying Machine Hydraulic Lifting Emulsifying Pot Emulsifying Mixing Unit

Product Description

Product Description
Product Parameters

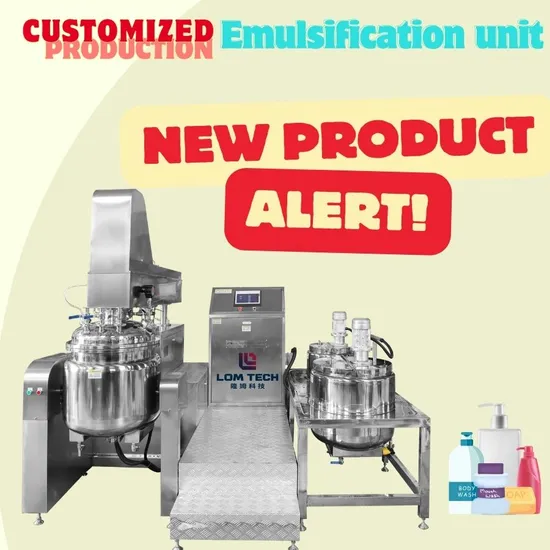

The vacuum homogenizing emulsification unit consists of a homogenizing pot (liftable pot lid, flipping pot body), water pot, oil pot, wall scraping double stirring, homogenizing emulsifying vacuum system, electric heating temperature control system, electrical control, etc. It is a special equipment for producing medicinal ointments, creams, lotions, etc.

Configuration	Brand
Motor	ABB
PLC Touch Screen	Siemens
Frequency Converter	Robin Kang
Reducer	Qipeng
Vacuum Pump	Xincheng
316L/304 Stainless Steel	Bao Gang
Main Electrical Components	Chint/Delixi

Detailed Photos
Pre-mixed Pot
The pre-mixing pot is divided into a "two-phase pot" of water pot and oil pot, equipped with heating and dispersion stirring functions. According to the customer's production process, the water phase material and the oil phase material can be dissolved, dispersed, heated and stirred separately to achieve the pretreatment effect.
Dispersion Disk
The rotating speed of the dispersing disk is one thousand four hundred revolutions per minute (variable frequency), and the heating method adopts interlayer electric heating, which can complete the pretreatment faster and more conveniently.
Hydraulic lifting system
The main pot lid is equipped with a hydraulic lifting system, which provides power by injecting hydraulic oil to drive the hydraulic rod to lift the pot lid. Once the hydraulic press is filled, it can be used for one to two months.

Stirring Box
The mixing bowl is equipped with a PTFE scraper frame and homogenizing head. The material will be sheared under the action of the low-speed rotation of the mixing frame and the high-speed rotation of the homogenizing head. At the same time, the emulsification of the material is completed under vacuum. Multifunctional Pot Lid
The multi-functional lid of the emulsification tank is equipped with a spice hole, a peek glass, a searchlight, a barometer, and a vacuum system. This kind of pot cover can more conveniently help the factory observe the vacuum emulsification situation of the emulsification tank.
Mixing Pot Tipping System
The emulsification tank unit is equipped with a main pot overturning system. This system can help the main pot rotate, making it easier for workers to clean the main pot and collect finished products.
Packing & Delivery
Products are transported in wooden boxes.The transportation method can choose sea transportation, land transportation, air transportation, express delivery, etc. Specific transportation methods can be negotiated with customer service.Company Information
LOM Machine Co., Limited and LOM INDUSTRY, established in 2016 and develop dramatically, is a professional Manufacturing & Trading company that manufactures various filling production line and bottle blowing machines with customized solutions. We are focus on the liquid industry, our products have been exported to an extended market of USA, Europe, Southeast Asia and South America. And offices in USA and Germany are built up to provide more convenient service for our adorable clients.
LOM pay attention to the after-sale service, we build a aftermarket team to help the customers deal with the installation, replacement of accessories, operation the device when the machine in using. We promise to provide superb quality and after-sale service, and is very pleased with customized orders.FAQQ1. Do you accept special orders?
A1. Yes, we accept. We can produce various chemical equipment according to your technical drawings.
Q2. Can you give us a quotation now?
A2. Please provide detailed technical data and we will design and quote for you as soon as possible.
Q3. Can you design for us?
A3. Yes, we not only provide products, but also solutions and designs.
Q4. What kind of products is the emulsification unit suitable for?
A4. This emulsification unit is specially designed and manufactured for the mass production of cream, honey, lotion and other emulsified products.
Q5. What kind of heating method does this emulsification unit use?
A5. This emulsification unit uses electric heating to achieve temperature control by heating the interlayer.
Q6. What are the main parts of the emulsification tank unit?
A6. This emulsification tank unit mainly consists of a control platform, a pre-mixing pot and a main pot. This structure can quickly help the factory complete emulsification and improve production efficiency.
Q7. What are the special parts on the main pot lid of this emulsifying unit?
A7. The main pot lid of this emulsifying unit has a searchlight, a peek glass, a spice hole, and a pressure gauge. These parts can help workers better observe the emulsification situation in the tank, thereby achieving better emulsification effects.
Q8. What method does this emulsifying unit use to lift the pot lid?
A8. This emulsification unit uses hydraulic lifting to lift the pot lid. Hydraulic lifting can lift more smoothly and ensure safety.
Q9. What are the parameters of the pre-mixing pot of this emulsification unit?
A9. The parameters of the pre-stirring pot of this emulsification unit are 100L water phase pot and 30L oil phase pot. Both can be customized according to your actual needs to meet your needs.

---
