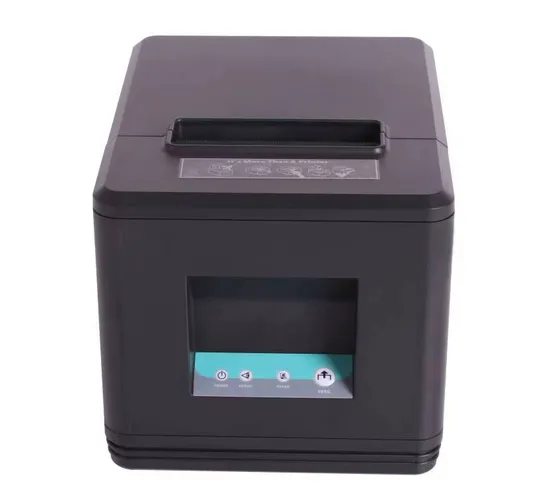

80mm POS Thermal Printer with Interface Serial/USB/Ethernet

US$30.00 1 Piece (MOQ)

Basic Info.

Model NO.

OA-28

Automatic Two-sided Printing

Support Automatic Two-sided Printing

Supply Paper Mode

Automatic

Interface Type

Bluetooth

Network Function

Wireless Network

Style

Black and White

Consumable Type

Split Cartridge

Max. Paper Size

80mm

Character Structure

Full-width Characters Printers

Optional1

58mm Printer

Optional2

ODM

Optional3

OEM

Optional4

Own Brand

Optional5

Serial/USB/Ethernet

Optional6

USB+LAN+Bluetooth

Transport Package

Optional

Specification

80mm

Trademark

oawell

Origin

Guangzhou

Production Capacity

50000

Packaging & Delivery

Package Size

62.00cm * 32.00cm * 52.00cm

Package Gross Weight

1.940kg

Product Description

Main features:
• Fast printing of text and images
• Long lasting auto-cutter up to 1.5 million cuts
• USB port 230mm/s, support network monitor function,IP change directly from different gateway and QR code.
• It's built-in power adaptor,which avoid messy code every where, save space.
• With wall hanging equipped.
• It can be used as top paper coming printer and front paper coming printer at the same time.
• Friendly utilities,virtual usb or usb hid setting by utilities

Model		OA-28
Printing	Print Method	Direct Thermal
	Print Speed	200/230mm/s
	Resolution	576dots/line or 572dots/line
	Printing Width	72mm
	Paper separator(option)	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Interface	USB /USB+Lan
	Page Mode	Support
Memory	Input buffer	256kbytes
	NV Flash	256kbytes
Fonts	Font A	12x24
	Font B	9x17
	Chinese	GB18030,BIG5 24x24dots
	Japanese/Korea	Support
	User-defined	Support
	Power , Paper,Erro	Support
Kichen Function	LED light with beeper	Without
	Hanging device	Equipped
Barcode	1D	UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
Detection	Sensors	Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional)
Power Supply	Input	AC 100V-240V 50/60HZ
	Output	DC 24V/2.5A
Paper	Paper Type	Thermal Receipt Paper
	Paper Width	48mm/52mm/56mm/64mm/68mm/76mm/80mm
Paper	Paper Thickness	0.06~0.08mm
	Roll Dia	Max. Ø 83 mm
	Paper Load	Easy paper loading
	Paper Cut	Manual tear or Auto-cutter
Physical Characteristics	Working Condition	0°C~45°C, 10%~80%RH
	Storage Condition	-10°C-60°C,10%~90%RH
	Dimensions	191(D)x146(W)x129(H)mm
	Net weight	1.94kg	Gross weight	2.14kg
Reliability	Printing head	150KM
	cutter	1.5million
Accessories		data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option)
Packing	Individual box	Dimension 25X20X16cm(LXWXH)	1unit/carton
	Master carton	Dimension 63X27X35cm(LXWXH)	6units/carton
OS	Emulation	ESC/POS
	Driver	Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
	SDK	Android, IOS
