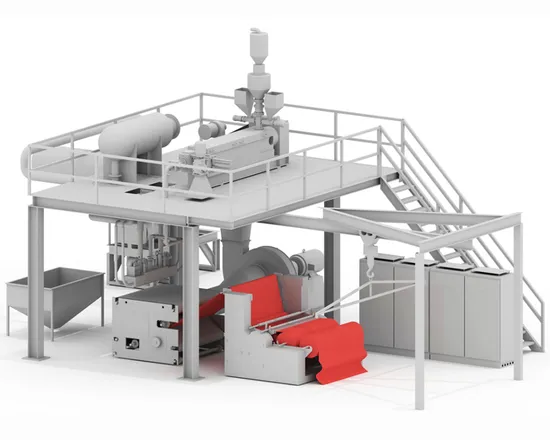

Jingwei Brand Jwm-2400 Meltblown Non-Woven Fabric Machine

Product Description

JINGWEI Brand Meltblown Non-woven Fabric Machine for Meltblown Face Mask Making
24h Online Customer Service

Detailed Photos

Product Description

Flow chart :
Raw material -----Melt extrusion -----Filtering -----Measuring -----Spinning -----Cooling--- Stretching Web forming-----Hot-rolling -----Winding and cutting--Final product

Application Area :
Hygienic/Medical products::sanitary napkin, diaper and so on,bandage first aid kit, surgical towel,birth aid kit etc;
Filler products:clothing warm flocs;
Filter products:mask filter layer,filter material for air,water and oil and so on;
Household Products:oil absorption blanket and so on.

Installation Instructions

1.Melt-blown Part
1-1	Vacuum Feeder	feeding capacity	300kg/h	1 set
		motor power	5.5kw*1
1-2	Screw Extruder	model	φ90; 30:1	1 set
		transmission motor	Siemens AC 55kw*1
1-3	Melting Filter	type	Candle	1 set
		filtration area	3.5 M²
		heating medium	oil heating/ conducting oil
1-4	Metering Pump	model	100cc	1 set
		Max. speed	35RPM
		motor power	3kw(35/1)*1
1-5	Meltblown Die Head Head Lifting Device	model	2400mm	1 set
		heating capacity	75kw*1
1-6	Head Lifting Device	model	2400mm	1 set
1-7	Air Heater	material	stainless steel	1 set
		motor power	300kw*1
1-8	Air Blower-High Pressure	model	2400mm	1 set
		motor power	90kw*1
1-9	Air Suction Blower	motor power	55kw*1	1 set
1-10	PLC Electric Control	cabinet group qty	1 group for meltblown	1 set
		PLC model	Siemens S7-300
2.Fabric Forming Part
2-1	Web Forming Machine	process speed	9~350m/min	1 set
		motor power	22kw*1 Siemens/Beide AC motor
		thickness	50mm
2-2	Electret Processor	model	2400mm	1 set
2-3	Auto Winder Machine	flatulence axis	3 pcs	1 set
		wind diameter	Max: 1200mm
		wind weight	Max: 500kg

Company Profile


FAQ

Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.

Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.

Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.

Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
