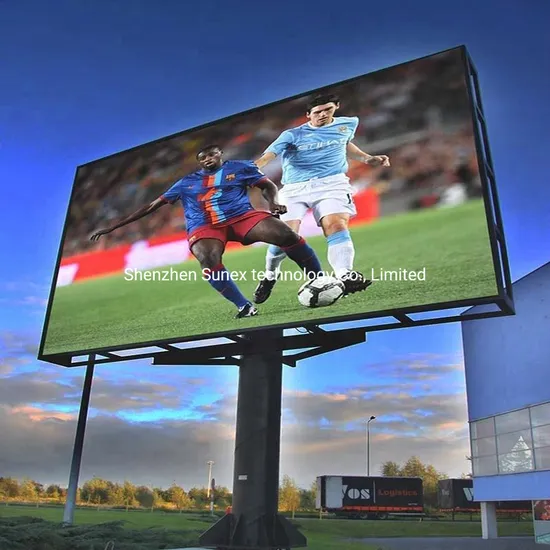

P3 P4 P5 P6 P8 P10 High Brightness Stable Outdoor Fixed Installation Advertising Screen LED Display

Product Description

Product Description
Detailed Photos

Item	SunextekLed Outdoor led display panel parameters
Pixel Pitch	5mm	6.67mm	8mm	10mm
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD 3-IN-1	SMD 3-IN-1	SMD 3-IN-1	SMD 3-IN-1
Module Size	320mm x 160mm
Module Resolution	64dots*32dots	48 dots x 24dots	40 dots x 20dots	32 dots x 16 dots
Cabinet Size	960mmx 960mm x145mm
Cabinet Resolution	192dots*192dots	144 dots x 144 dots	120 dots x 120 dots	96 dots x 96dots
Cabinet Weight	35KG
Grey Scale	16 bit
Refresh Rate	>1200Hz
Scan Type	1/8Scan	1/6 Scan	1/5 scan	1/4 scan &1/2Scan
Brightness	5500	5500	5500	4500/5500
Power Consumption(Max./Ave.)	900/400 W/m2	1200/360 W/m2	1000/300 W/m2	800/240W/m2
AC Input Voltage	110-240V
AC Input Frequency	50/60 Hz
Viewing Angle(Horizontal/Vertical)	140H/140V
Storage Temperature	-40 ~ +60 degree
Operation Temperature	-40 ~ + 50 degree
IP Rating	IP65
Lifetime	100,000 hours

Certifications
Packaging & Shipping
After Sales Service FAQ
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go
to customer's country for on-site guidance.
8) Warranty period: 2-3 years after shipment.

---
